Terex - Model MHL350 -Material Handler System
Engine power 160 kW. Emission standard Stage IV/EPA Tier 4 final. Stage IIIA / EPA Tier 3. Service weight without attachments 33.0–40.9 t. Loading equipment 14.0–16.0 m.
Recommended attachments
- Fuchs multi-tine
- grapple 0.6 m3
- Open or half-closed
- Fuchs magnetic
- plate MP 1150
- dia = 1150 mm with 13 kW magnet system
- Clamshell grab 1.0 m3 Density of materials handled up to 800 kg/m3
Telematics
- Machine data at a glance
- Indication of specified service intervals
- Fault messages shown in plain text
- Operating cost optimisation
- Machines kept in perfect condition
CAN bus and quick test for fuses
- Cutting-edge technology
- Straightforward machine diagnosis
- Intelligent fuse test for all situations
- This new cab was specifically designed for handling machines
- Extremely convenient access through a unique sliding door
- Windscreen with negative slant for a better view
- Perfect space utilisation for generous oddment surfaces and deep stowage spaces
- Important units easily accessible from the service platform
- Safe and convenient access to engine, air filters and other components
- Convenient access to engine, air filters and other components
- Ladders on both sides for convenient access to the superstructure platform
- Straightforward servicing and care guaranteed
- Improved visibility
- More legroom and comfort
- Reduced dust in intercooler-water and oilcooler
- Enhanced cooling performance
- Easy and intuitive operation
- Full monitoring of the machine data

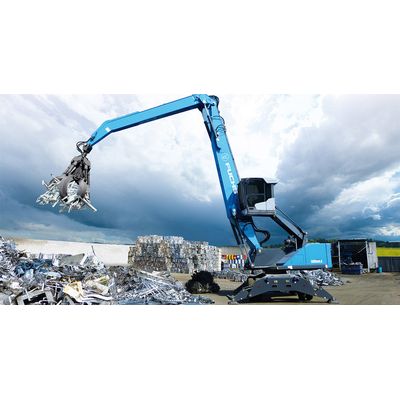

Cutting-edge engine technology combined with intelligent hydraulics make the MHL350 one of the fastest and most sensitive material handlers in scrap handling. With an operating weight of up to 37.8 tonnes, a reach of 16 meters and an undercarriage width of 3 meters, the MHL 350 is a particularly stable machine, its statistics conclusively bearing out its performance. The high-output 160-kW turbo diesel engine and powerful hydraulics operating in a notably efficient dual-circuit system ensure that even heavier loads are handled with precision and speed. Alongside its near legendary ruggedness, state-of-the-art technology and maximal occupational safety are further advantages offered by this machine.
