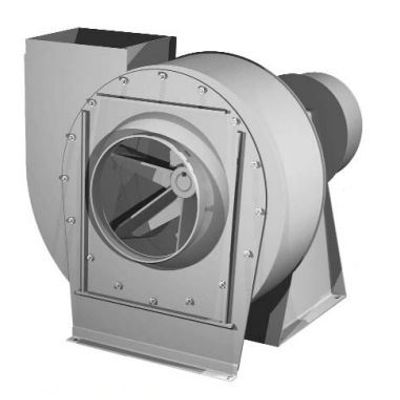

BloApCo - Model 30-2 -Material Handling Fan
Key Features: Oversized hub. Rotating outlet: 360° at 22.5° increments. Special fan wheel design: All-continuous welded construction. Certified, dynamically balanced and stress-relieved. Non-clogging, with flared inlet, tapered, blade and supporting back plate.
Most popular related searches
- Special heavy-duty blades
- Angular blade construction adds efficiency.
- One-piece spider gusset adds strength.
- Oversized chrome steel - centerless ground shaft
- Eliminates shaft deflection under heavy loading.
- Insures close tolerance between fan shaft, bearings and fan wheel.
- Heavy-duty flanged bearings
- For long life.
- Heavy surge loading.
- Unique shaft mount
- Allows placement of the bearings close to the wheel and drive pulley, reducing overhung bearing and shaft stress.
- Exterior continuous welded fan housing
- Provides years of extended trouble-free operation.
- Integral fan pedestal/motor mounting
- Arrangement 9.
- OSHA approved belt guard
All dimensions are submittal data only, and subject to change without notice. Do not use for construction unless BloApCo certified.
