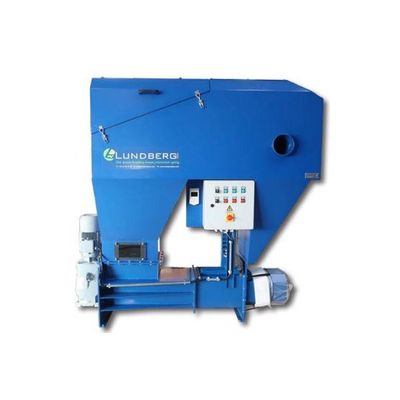

Lundberg Tech - Model 140 -Matrix Compactor
MatrixCompactor 140 All-in-one Units are designed to capture, convey, cut, collect and compact adhesive matrix and edge trim waste from all process machines. They can handle matrix and edge trim from 1 process machine and if edge trim only up to 4 process machines. Configuration of Granulator(s) is customised to the material and number of process machines
Most popular related searches
- Maximum width of matrix Up to 550mm (22”)
- Maximum air capacity 1.600 m³ / hour (940 CFM)
- Maximum speed 150 m / min (490 FPM)
- Maximum pipe size Dia. 160 mm (6”) transfer
- Maximum suction distance Up to 10 m (32 feet)
- Size (LxWxH) 2.212x820x2.110 mm
- (6’-11” x 3’-3” x 7’-0”)
- Weight 680 kg (1,500 lbs.)
- Motor ventilator 2,2kW (3 HP)
- Motor compactor 2,2kW (3 HP)
- Power 3 Phase, 230-460V, 50-60 Hz
- Sound 68-72 dB (A)
- Colour RAL5010
