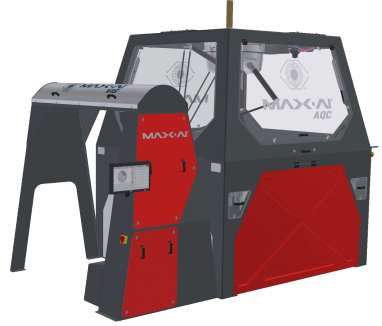

Max-AIModel AQC-1 -Autonomous Quality Control (AQCs) Sorting Machine

SHARE

Max-AI AQCs (Autonomous Quality Control) are the ultimate in post-sort automation. When combined with NRT optical sorters, the paper and container sorting process is 100% autonomous and the need for human contact with waste is eliminated. The AQC-1 makes multiple sorting decisions autonomously; for example, separating thermoform trays, aluminum, 3D fiber and residue from a stream of optically-sorted PET bottles. All of this is done at rates exceeding human capabilities and each pick is prioritized for profitability. This advanced technology uses a machine vision system to see the material, specialized artificial intelligence to think and identify each item, and robotic sorters to pick targeted items or contamination. Max-AI AQCs provide MRF operators with sustained and consistent sorting performance while improving safety, recovery, product quality and operational expenses.

Most popular related searches
  • A completely autonomous high-volume recovery solution when paired with NRT optical sorters.
  • Exceeds human capabilities in every metric including pick rate, accuracy, and uptime; and sustains those capabilities every minute of the day.
  • Up to six separate sorts from a single unit.
  • Picks are prioritized by value, weight, or other operator specifications. Priorities are easily adjusted when market conditions change.
  • Advanced neural networks can be retrained to identify new materials as waste streams change.
  • Can be installed in existing MRFs with no down time.
  • Improves plant safety by eliminating human contact with waste.
  • Installed Length: 11` 3"
  • Installed Width: 7` 2"
  • Installed Height: 8` 4"
  • Installed weight: 3,000 lbs (approx)
  • Model: AQC-1
  • Identifiable Materials: Plastics & metal containers, paper, cardboard, cartons, residue
  • Sorting Speed: Up to 70 picks per minute
  • Number of Sorts: Up to 6 separate sorts
  • Air Consumption: 40 scfm @ 100psig
  • Required Air Supply: Filtered and Dry Air, Pressure: 100 psig, ISO 8573.1 Class 5.4.2
  • Voltage, VAC 50/60 Hz, Single Phase: 230V
  • Main Circuit Breaker: 20A
  • Full Load Amperage (FLA): 15A
  • Power Consumption @ FLA: 3.5 kW
  • Maximum Object Weight: 1 lbs.
  • Maximum Object Size: 10 inches
  • Sorting Conveyor Speed: 100-200 feet/min.
  • Suitable Operating Environment: Indoors only; 35-100°F
