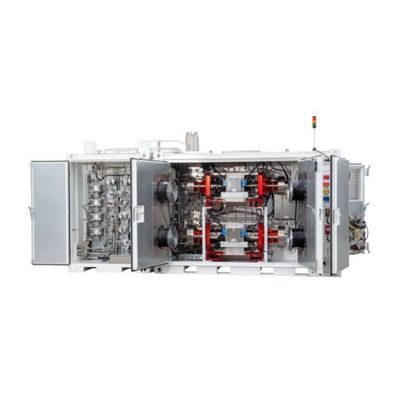

MAX - Compression System

The structure and function of the individual modules are:

• MAX Inlet: Supply of the compressor stages (MAX Compression Stage 1 & 2) with hydrogen.
• MAX Power: Hydraulic drive for the compressor stages
• MAX Auxiliary: Generation and distribution of pneumatic pressure for all pneumatic valves and pneumatic motors used in the system.
• MAX Compression Stage 1 & 2: compression of the hydrogen
• MAX Outlet: Discharge of the compressed hydrogen towards the MAX STORAGE HP
• MAX Cool: Intermediate cooling after the individual compression stages.

• Feature : Value
• Product Type : Compression System
• Installation location : freestanding
• Weight : 10000 kg
• Width : 3400 mm
• Length : 2200 mm
• Height : 6150 mm
• operating temperature : -20°C / +40°C
• max. working pressure PS : 975 bar
• max. working pressure PW : 930 bar
• Process fluid : H2
• min. admission pressure : 24 bar
