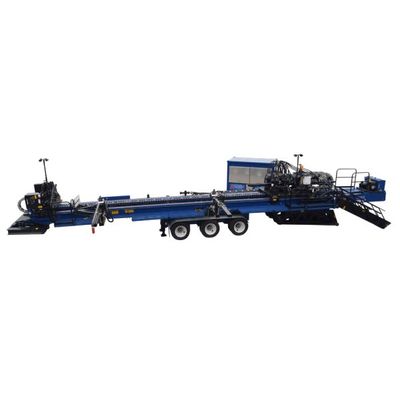

American Augers - Model DD-660RS -Maxi-Rig Directional Drills
Our newest Maxi rig design that provides the latest in mobility and performance; Rapid setup features to decrease the time and effort to get to work. Hydraulically adjusted pipe support ensuring the pipe joints are always in the right position. Optional pipe loader that transports on the drill unit. Dual power units that feature ROOTS (Run On One Technology System) to reduce fuel cost during the pilot bore. Standard Telematics for communicating with the rig during operation.
Most popular related searches
directional drill
drilling rig
piston pump
directional drilling rig
drilling pipe
drilling unit
pressure filtration
drilling regulations
piston pump fluid
data acquisition system
POWER TRAIN
- Engine: Cummins QSX15 Tier 4 Final (or Tier 3 depending on countro of purchase)
- Rating: 600 HP (447 kW) each
- Fuel Capacity: 650 U.S. Gallons (1325 L)
- Hydraulic Filter: High Pressure Filtration and Return to 6 Micron ABS
- Battery: (2) Deka 908DMF 24 V, 1450 CCA
CARRIAGE SYSTEM
- Maximum Thrust/Pullback: 660,000 lbs. (300 Tonnes)
- Carriage System: Rack & Pinion, (4) Pinion with Adjustable Force Limiter
- Maximum Carriage Speed: 107 ft. (33 m)/minute
- Carriage Motors: (4) Radial Piston/Dual Displacement
- Carriage Brakes: (2) Only on Carriage
- Carriage Gearbox: (4) Planetary Gearboxes
- Hydraulic Pump: (4) Piston Pump, Closed Loop
ROTARY DRIVE
- Rotary System: (4) Pinion & Gear Drive w/Infinitely Variable Torque
- Maximum Rotary Torque: 80,000 ft-lbs. (108,500 Nm) @ 0 – 34 RPM
- Minimum Rotary Torque: 30,000 ft-lbs. (40,675 Nm) @ 0 – 90 RPM
- Maximum Rotary Speed: 90 RPM
- Fluid Course: 3 3/4 in. (95.25 mm) for increased downhole hydraulic power
- Mud Flow Rate: Permits up to 1000 U.S. Gallons (3,785 L)/minute flow
- Maximum Mud Pressure: 1,500 psi (103 bar)
- Hydraulic Pump: (4) Piston Pump, Closed Loop
- Auxiliary Pump: (1) Piston Pump, pressure Compensated
- Fluid Course: 3 3/4 in. (95.25 mm) for increased downhole hydraulic power
- Mud Flow Rate: Permits up to 1000 U.S. Gallons (3,785 L)/minute flow
- Maximum Mud Pressure: 1,500 psi (103 bar)
WRENCH
- Wrench Travel: Wrench can Travel the Full Length of the Thrust Frame
- Maximum Breakout Torque: 220,000 ft. lbs. (298,280 Nm)
- Maximum Makeup Torque: 100,183 ft-lbs. (138,252 Nm)
- Clamp/Grip Range: 3.5 in.– 10.5 in. (89 – 267 mm) OD
- Wrench System: Triple Jaw Wrenches with 12 in. (305 mm) separation
- Carriage to Wrench Clearance: 36 ft. (11 m) max.
DRILL RIG
- Drill Angle: 10° - 18°
- Drill Pipe: Range II – 30 ft. (9.1 m)
- Cabin: 8x12 ft. skid (8x20 ft. available)
MISC.
- Processor Controls: Sauer Danfoss micro-processor controls with touch screen, optional data acquisition
- Auxilliary Power Unit: 9.9 HP Hatz 1840 diesel engine for rig setup
- Pipe Capacity: 4
- Optional Pipe Loader:
DRILL RIG WEIGHTS & DIMENSIONS
- Maximum Length: 64 ft. 10 in. (19.5 m)
- Maximum Width: 8 ft. 2 in. (2.5m)
- Maximum Height (Transport): 12 ft. 1 in. (3.68 m)
- Travel Weight: 100,300 lbs. (47,763 kg)
SINGLE POWER PACK WEIGHTS & DIMENSIONS
- Maximum Length: 19 ft. 8 in. (6 m)
- Maximum Width: 8 ft. (2.43 m)
- Maximum Height: 9 ft. 5 in. (2.88 m)
- Total Weight: 35,500 lbs. (16,103 kg)
OPTIONS
Dual Power Pack for Run-On-One-Technology-System (ROOTS):
- Simultaneously run both power units
- Permits one power unit to run while powering through the unused power unit
- Allows one power unit to run, but keeps the unused power unit isolated
- Excercise the ability to have one power unit running, but have the unused power unit removed
- Unit maintains full power with single engine, but system runs with half rotational RPM and half carriage drive speed
