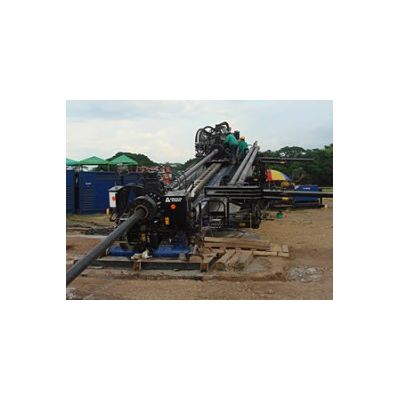

American Augers - Model DD-1100RS -Maxi-Rig Directional Drills

World Record Crossing Strength!

• 2.05 Miles (3300 m) of 18 in. (460 mm) Pipe

• Caterpillar C-18 Tier 4i or Tier 3 (depending on country od purchase) Diesel Engine
• 1,100,000 lbs. (500 Tonnes) of Maximum Thrust/Pullback Power
• 100,000 ft-lbs. (136,000 Nm) of Maximum Rotary Torque
• Rack & Pinion 6 Pinion Drive with Adjustable Force Limiter
• Wrench Travels Full Length of Thrust Frame
• 4 in. (102 mm) Fluid Course for increased downhole hyd. power
• Accommodates Range II Drill Pipe
• 10° - 18° Variable Drilling Angle
• Run-On-One-Technology-System (ROOTS) capable

POWER TRAIN - ONE POWER PACK

• Engine: Caterpillar C-18 Tier 4i or Tier 3 Diesel (depending on country of purchase)
• Rating: 765 HP (570 kW)
• Fuel Capacity: 650 U.S. Gallons (2,460 L)
• Hydraulic Capacity: 220 U.S. Gallons (833 L)
• Hydraulic Filter: High Pressure Filtration to 6 Micron ABS

CARRIAGE SYSTEM

• Maximum Thrust/Pullback: 1,100,000 lbs. (500 Tonnes)
• Carriage System: Rack & Pinion, (6) Pinion and Gear with Adjustable Force Limiter
• Maximum Carriage Speed: 101 ft. (30.7 m)/minute
• Carriage Motors: (6) 1017 cc Variable Displacement
• Carriage Gearbox: (6) Planetary Drives
• Hydraulic Pump: (2) Closed Loop-Piston

ROTARY DRIVE

• Rotary System: (4) Pinion and Gear Drive with Infinitely Variable Torque
• Maximum Rotary Torque: 100,000 ft-lbs. (135,600 Nm) @ 0 – 31 RPM
• Minimum Rotary Torque: 40,000 ft-lbs. (54,230 Nm) @ 0 – 75 RPM
• Maximum Rotary Speed: 85 RPM
• Rotary Motors: (4) 160cc, Axial Piston, Variable Displacement
• Rotary Brakes: (4) Spring Applied, Hydraulic Release
• Fluid Course: 4 in. (102 mm)
• Mud Flow Rate: Permits up to 1,000 U.S. Gallons (3,785 L)/per minute
• Maximum Mud Pressure: 1,500 psi (103 bar)
• Mud Shutoff Cylinder: 2 in. Bore x 12 in. Stroke (51 - 305 mm)
• Mud Blow Down Cylinder: 1 1/16 in. Bore x 4 in. Stroke (27 - 102 mm)
• Hydraulic Pump: (2) Closed Loop-Piston
• Auxiliary Pump: (1) Pressure Compensated-Piston
• Slip Spindle: 8 5/8 in. (219 mm)

WRENCH

• Wrench Travel: Wrench can Travel the Full Length of the Thrust Frame
• Maximum Breakout Torque: 230,000 ft-lbs. (311,800 Nm)
• Maximum Makeup Torque: 100,183 ft-lbs. (135,800 Nm)
• Clamp/Grip Range: 3.5 in.– 10.5 in. (89 – 267 mm) OD
• Wrench Motor: (2) Hydraulic, LSHT, 12.5 CIR
• Wrench Brake: (1) Spring Applied, Hydraulic Release

DRILL RIG

• Drill Angle: 10° - 18°
• Drill Pipe: Range II – 34 ft. (10.4 m)

SAFETY

• Es!Lok – Exit Side Lockout System with 1 mile (1.6 m) Range
• ZAPALERT – Electrical Detection Device
• Run on One Technology system (ROOTS)
• Free standing operator`s console with pressure gauges
• Operator`s manual and other unit support materials

DRILL RIG DIMENSIONS

• Length: 64 ft. 10 in. (19.5 m)
• Width: 8 ft. 2 in. (2.5 m)
• Height: 11 ft. 10.25 in. (3.6 m)

SINGLE POWER PACK DIMENSIONS

• Length: 19 ft. 8 in. (5.99 m)
• Width: 8 ft. (2.43 m)
• Height: 9 ft. 5 in. (2.88 m)

SINGLE POWER PACK WEIGHT

• Total Weight: 35,500 lbs. (16,103 kg)
• DRILL RIG WEIGHT
• Total Weight: With Wrenches: 112,580 lbs. (51,065 kg)

PRODUCT OPTIONS

• Dual Power Pack for Run-On-One-Technology-System (ROOTS):
• Simultaneously run both power units
• Permits one power unit to run while powering through the unused power unit
• Allows one power unit to run, but keeps the unused power unit isolated
• Excercise the ability to have one power unit running, but have the unused power unit removed
• Unit maintains full power with single engine, but system runs with half rotational RPM and half carriage drive speed
