MAXIGAS - PSA Nitrogen Generators
MAXIGAS PSA nitrogen generators use patented technology to produce an uninterrupted supply of gaseous nitrogen, on site. This compact system is ideally suited for low-flow, high purity applications that presently employ high-pressure gas cylinders or dewars of nitrogen. With MAXIGAS PSA nitrogen generators, the inconvenience of gas cylinders and liquid dewars is eliminated. Nitrogen is generated at your location, continuously and reliably, requiring only a supply of compressed air.
PSA nitrogen generators operate on the Pressure Swing Adsorption (PSA) principle to produce a continuous stream of nitrogen gas from compressed air. Pairs of extruded aluminum columns are filled with carbon molecular sieve (CMS). Pretreated compressed air enters the bottom of the on-line column and follows up through the CMS. Oxygen and other trace gasses are preferentially adsorbed by the CMS, allowing nitrogen to pass through. After a pre-set time, the on-line column automatically switches to regenerative mode, venting contaminants from the CMS. Carbon molecular sieve differs from ordinary activated carbons in that it has a much narrower range of pore openings. This allows small molecules such as oxygen to penetrate the pores and be separated from nitrogen molecules which are too large to enter the CMS. The larger molecules of nitrogen by-pass the CMS and emerge as the product gas
- Food packaging
- Chemical Blanketing
- Laser cutting
- Selective Soldering
- Wave Soldering
- Electronics
- Coffee Packaging
- Pharmaceuticals
- Wave Soldering

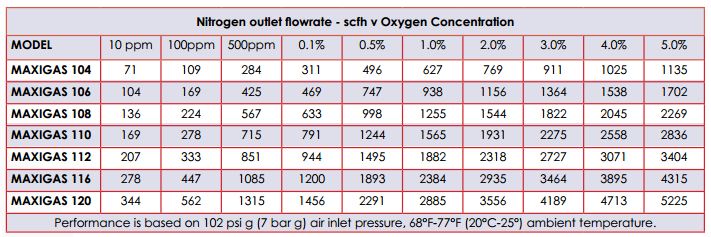

- Nitrogen flows from 70 scfh to 5225 scfh
- Nitrogen purity adjustable from 95% to 99.999%
- High efficiency compressed air pre-treatment package
- Oxygen analyzer with alarm capabilities
- Flow meter
- High pressure capabilities - up to 232 psig outlet
- Compact space saving design
- Flexible modular design
- High efficiency CMS
- Service due indicators
- ECO Mode - energy savings during low demand
- Oxygen analyzer for continuous monitoring of nitrogen purity
- Flow verification kit
- Analog outputs for remote monitoring
- Alarm connections
- Noise reduction
