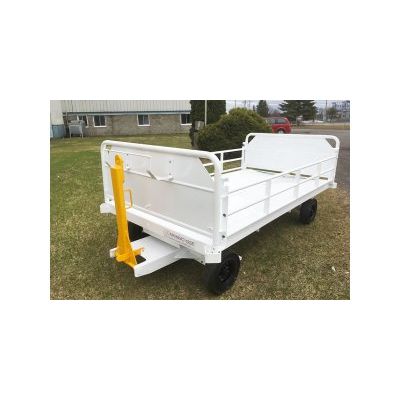

Maximo - Model OBC -Open Baggage Cart
Capacity : 6000 lbs (2722 kg). Overall Size : 66-7/8″ x 132-3/8″ (170 cm x 336 cm) drawbar up. Clear Deck size : 60-1/8″ x 112-3/16″ (153 cm x 285 cm). Bed Height : 23-7/8″ (61 cm). End Panel Height ; 26-15/16″ (68 cm). Side Gate Height ; 15-13/16″ (40 cm). Overall Height : 50-13/16″ (129 cm). Weight : 1262 lbs. (572 kg). Wheel Base : 83-1/4″ (211 cm). Wheel Track : 50-5/16″ (128 cm).
Most popular related searches
- Steering
Fifth Wheel with a 2’’ Dia.(5.1 cm) Spindle with hub - Wheels
4.00x8x3.75 solid tires with 5 bolt 9 ga rim mounted on cast iron hubs 1-3/8’’ x1-1/16’’ bore taper roller bearings - Parking Brake & Hitch
Mechanically applied by raising tow bar ( available flame cut tow rings 1-1/2’’ ID or 3-3/4’’ ID) – Rear ‘’E’’ Hitch With 1’’ pin is standard - Options
Hot dipped galvanized
Urethane paint – color of your choice
