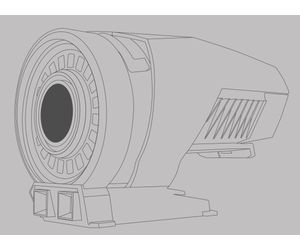

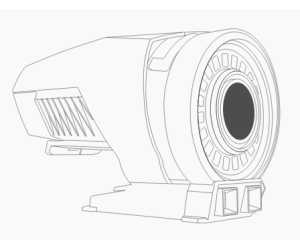

MaxSHOT - 3D Optical Coordinate Measuring System
In combination with other Creaform technologies, the MaxSHOT 3D adds accuracy for larger parts and increases the speed of photogrammetry workflows for projects of any complexity. Creaform’s MaxSHOT 3D™, a photogrammetry optical coordinate system, is a game changer for product development, manufacturing, quality control and inspection teams. It is the ideal solution to achieve the highest measurement accuracy and efficiency for large-scale projects and parts from 2 to 10 m. Imagine obtaining accuracy levels better than 0.015 mm/m. Gain peace of mind knowing that your measurements are always right on the dot.
Elevate your measurement speed and accuracy on large parts
What’s more, thanks to sophisticated, proven user guidance technology and easy-to-use software, technicians of all levels—even non-metrology experts— can use the MaxSHOT 3D. Contrary to traditional photogrammetry, the MaxSHOT 3D features automatic feedback before final measurements captured. Never take a bad image again!
If you consistently work on large-scale projects, the MaxSHOT 3D is your go-to solution to slash budgetbusting measurement mistakes, improve product quality, increase process efficiency, and minimize overall operating costs.
- Accuracy of 0.015 mm/m
- VDI/VDE 2634 Part 1
- Integrated and streamlined process
- Worldwide support

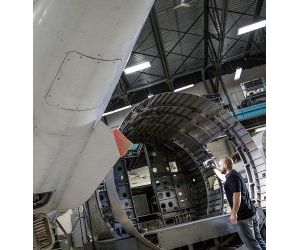

The MaxSHOT 3D enables unprecedented accurate, repeatable and reliable 3D measurements on large-sized parts in a wide range of sectors, including aerospace, heavy industry, power generation and transportation.
Volumetric accuracy
0.015 mm/m (0.00018 in/ft)
Average deviation
0.005 mm/m (0.00006 in/ft)
Reliable acceptance tests
Based on the VDI/VDE 2634 part 1 standard
To facilitate inspections and reverse engineering workflows, the MaxSHOT 3D is easy to use in any data acquisition environment regardless of a part`s size, complexity, geometry, or assembly.
- Intuitive software diagnostic tools

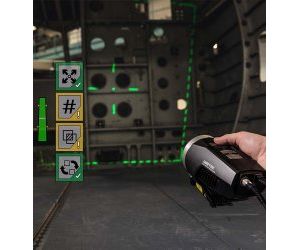

- Laser projected frame with GO/NO-GO real-time feedback on measurement pictures
- Multi-function buttons for easy interaction with VXelements software
- Intuitive controls and operations: Experience ultra-short training and learning curves

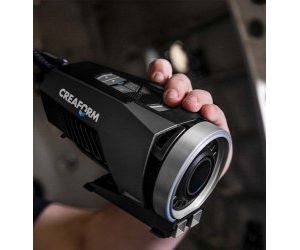

Acquiring 3D measurements of large parts is no longer a challenge thanks to the MaxSHOT 3D. No matter where a large-sized component is located or how it is integrated in a sub-assembly, the MaxSHOT 3D`s performance is not compromised. Rugged and robust, it can handle any large-scale project.
Lightweight and small
0.79 kg (1.75 lb)
Everything in one case
Quick set-up
Up and running in less than 2 minutes
Rugged and robust

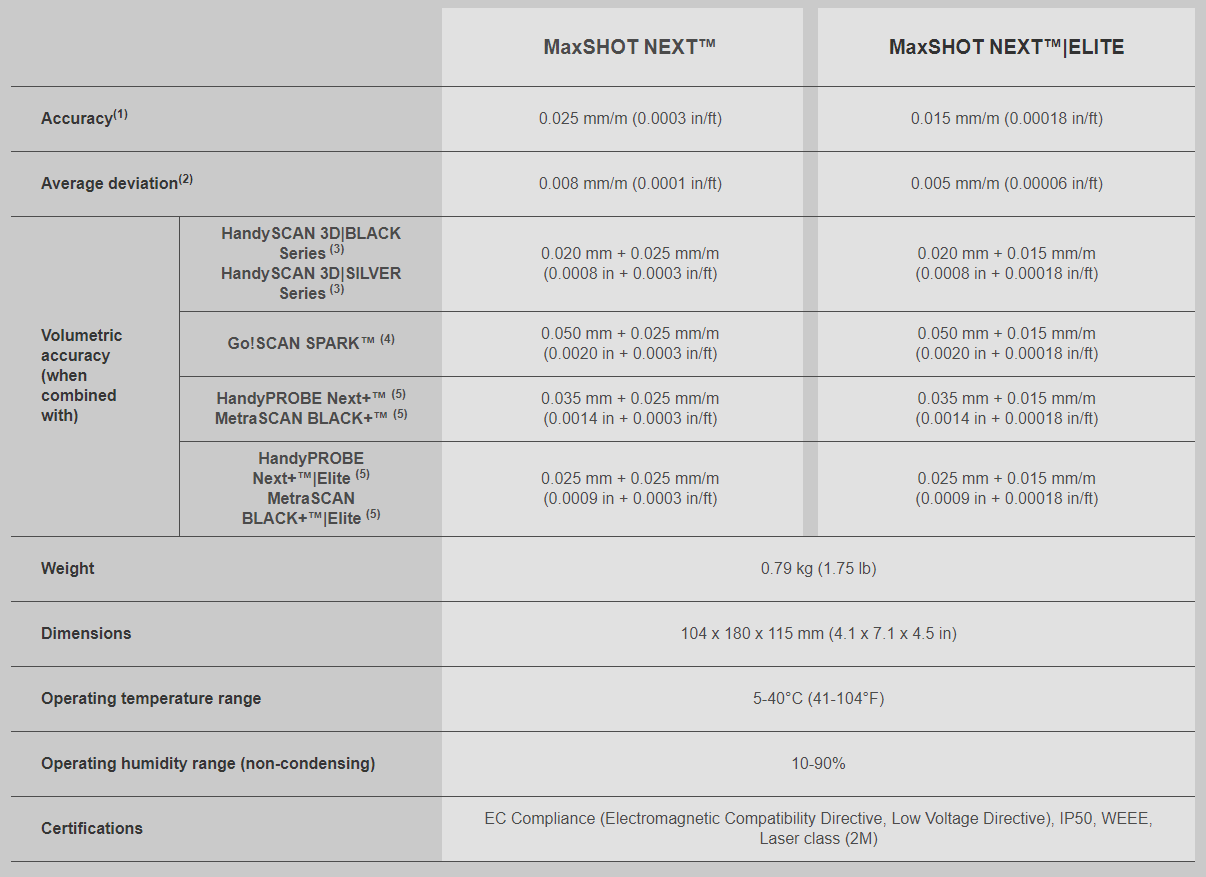

The MaxSHOT 3D is designed specifically for photogrammetric applications, offering unbeatable accuracy, speed and user comfort. Take a look at our technical specifications to determine if it`s right for your unique projects.
- Volumetric accuracy: 0.015 mm/m, (0.00018 in/ft)
- Average deviation: 0.005 mm/m, (0.00006 in/ft)
- Weight: 0.79 kg (1.75 lb)
Creaform’s metrology centres are located around the world and offer the following services* in different languages:
- Software and hardware technical support helpline
- 3D scanner basic and advanced repair
- Equipment maintenance, tuning and calibration
- Loaner services
- 3D scanner component replacement
- Parts reselling
- Warranty renewal
* Services may vary depending on each metrology center.
Creaform designs, manufactures, and calibrates the MaxSHOT 3D with the most sophisticated quality management system and according to internationally recognized standards, the ISO 9001 and ISO 17025.
The MaxSHOT 3D’s acceptance test are based on VDI\VDE 2634, a rigorous standard specifically designed to assess the performance of photogrammetry measurement systems.
Each MaxSHOT 3D is delivered with a personalized certification and fully documented test results.
Product and support based on international metrology standards
At Creaform, product and service quality is our top priority. Being pioneers in portable 3D measurement technologies, we are committed to exceeding our customer requirements by developing innovative solutions.
We are invested in continuously improving processes, setting new standards for the industry and ensuring full satisfaction of our clientele.
Creaform’s 3D scanning solutions address the 3D measurement requirements for each stage of the manufacturing process
Reduce costs and ensure the quality your customers expect
Quickly extract dimensional information from existing components to produce new CAD reference models
You’ll be amazed at the world of opportunities our 3D scanning solutions offer ahead-of-the-curve manufacturers.
3D scanning large parts has never been easier, thanks to the MaxSHOT 3D. Combining the accuracy and speed of photogrammetry technology with the ease of use and portability of 3D scanning, the MaxSHOT 3D can be used for a variety of apllications, including product development and quality control, by users of any skill level.
Discover how the MaxSHOT 3D measures up in terms of speed and accuracy.
