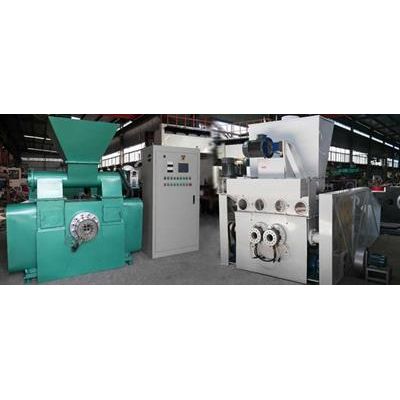

Maxton - Log Briquette Maker

High Pressure

The stamping energy comes from the big eccentric wheels which are connected with the motor by belt. In this running process, lots of energy stores and brings the pinch to stamp. The piston will push for 272 times every minute, makes an impact force up to 300 tons, which helps to make a high density biomass briquette, final biomass briquette density around 1-1.4 g/cm³. Compared, the density of the sawdust only have a density around 0.1 g/cm³.

More Than A Briquette Machine

The log briquette maker can produce briquette size between 6-80 mm, it does jobs not only a briquette machine does, also makes good pellet! Beside this, there are many advantages for you to choose a log briquette maker rather than a pellet machine, see the following:

Flexible die system can rapidly transform your briquette size, allowing for easy changeover for small pellets or big briquettes, reduced stock holding. Further increasing the efficiency and productivity of your manufacturing operations.

Ten reasons why you should choose our log briquette maker

1. Can smoothly run for 7000 tons capacity without any fault;
2. The mold is made of special alloy steel, small and light, can keep using for 300-400 tons capacity;
3. With converter technique, feed speed adjustable, minimize the energy cost;
4. High-precision bearing bush, increase the smoothness of turning and impact resistance for the main shaft, highly extend the bearing working time;
5. Force oiling system for the piston and shaft, keep the machine running smoothly and extend these parts working time;
6. A variety of material adaptability, almost all the biomass materials can be briquette;
7. Three levels pre-press helps to make high quality briquette;
8. Can produce briquette from 8-85 mm only by changing the mold in an easy way;
9. Continuous work, Low energy consumption as well as low maintenance rate;
10. Simple and easy on operation.

Raw Materials

All the biomass and bio-waste.

Example: Crop stalks (including cornstalks cotton stalks ), grain shell, Rice husk, peanut shell and stalks, cotton stalks, sawdust, branch, bark, bean straw, bamboo powder, furfural residue(could be mixed used), wood scraps, forest harvesting slash, household refuse, scraps produced by paper making factory, living garbage, etc.

Material requirement

• Size: less than 30 mm.
  This will make a low cost on the crusher as well as the energy cost of the crushing process.
• Moisture: between 10-18%
  As the optimum moisture content for briquette purposes varies with the raw material,  from our experience the recommended moisture is from min. 10% to max. 18%. The ideal moisture content for most of the woods based material is 10-12%.
