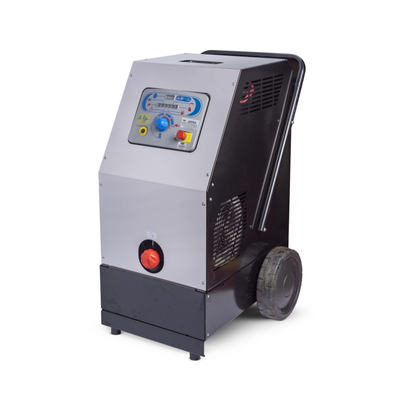

Mazzoni - 30 L Big Hot Box Troley
The Mazzoni Firebox generates hot water through a diesel boiler placed inside. It can be fed even by a simple pump, the important thing is that the pressure is at least 15 bar. To operate it, only electricity and diesel for the boiler. Heats cold water up to 150° C, essential where hot water is needed for more effective washing or for special uses in agriculture, livestock farming, industry, swimming pools, etc. It can be supplied in different voltages (12-24-230-400 Volts). The diesel pump is coupled directly to the fan through a joint.
The boilers produced by Mazzoni are high-performance and low consumption. The emission values for gases are lower than those required by recent European regulations. The boiler structure is made of stainless steel and the tube used is 3/8\”. Stainless steel cover and painted steel base, supplied with 17L diesel tank and level inserted in the structure. Safety features: safety valve, water flow control.
- Flame control
- Flow switch, level switch, pressure switch
- The diesel pump is directly coupled to the fan through a joint
- Mazzoni boilers with high efficiency and low consumption
- Minimum water supply pressure 15 bar
- Counter display and alarm lights
- Safety valve
- Electrical panel with switch and temperature control thermostat
- Stainless steel cover and painted steel base
