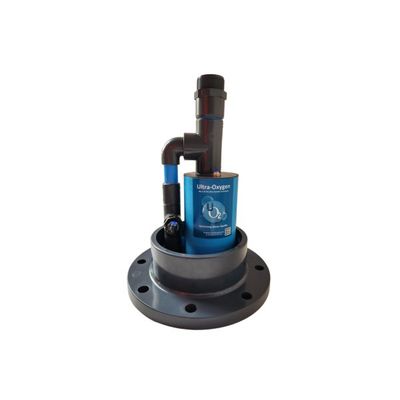

Ultra-Oxygen - Model 1N-VIPER -MB/UFB Generator

This is the mother of Ultra-Oxygen Micro and Ultrafine Bubble generators. This unit generates Micro and Ultrafine bubbles in the most energy-efficient manner and offers the user 2 gas/liquid inputs. This ISO FLOW SANS 966 Class 9 and 12 uPVC micro and ultrafine bubble (MB/UFB) generator can be used in freshwater, nutrient-rich water, or seawater. The unit as is can be used inside tanks, water reservoirs and dams.

It is recommended that the MB/UFB generator be used with a 0 to 10L/min airflow regulator and/or 0 to 5L/min rotameter for mixing liquids with the 1N-PVC unit and with a 0 to 20L/min airflow regulator and/or 0 to 5L/min rotameter for mixing liquids with VIPER-30. It can be mounted on a submersible, or via pipework to a land-based pump with the following spec: 0,37-0,9kW _80-200L/min_9-12mHead with a 50mm outlet.

APPLICATION: To increase dissolved oxygen in the water and to be able to maintain it on the required level. This unit requires 10L/min air into the system to operate on its best and was designed for all oxygen-to-water transfer applications. This extremely useful to bring down high Biochemical Oxygen Demand (BOD) and Chemical Oxygen Demand (COD) readings. It also now possible to increase Oxidation-Reduction Potential (ORP) in any water body, sustainably, quickly, and very cost-effectively.

PUMP SPECIFICATION: SV 10-M-50 – 220V – 0,75kW – Single Phase -11,2m Tot Head @ 0.1m3/min – 18,5kg – Discharge Bore 50mm – Stairs (SV-series) commercial and industrial wastewater submersible pump.

EXCLUDED FROM PRICE but AVAILABLE ON REQUEST: Consultancy, Delivery, Pumps, O2-O3 Generators, Flow meters, Cloud-base Water-View equipment providing DO-TEMP-EC-pH-COD-N readings, project-specific Enclosures, Floats, Mechanical, Electrical, and Plumbing work, and other client site specific requirements.

Price: $ 745 each
