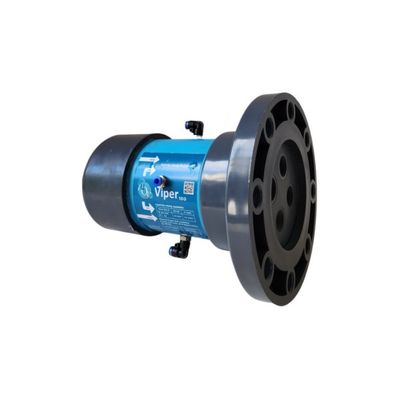

Ultra-Oxygen - Model VIPER 100 -MB/UFB Generator

This is a High-Quality MB/UFB liquid pump and static mixer for the injection of liquid and gasses into water. Unique cavitation technology included. The units are manufactured in high-quality PVC and are suitable for harsh water-related applications.

It is recommended that the MB/UFB generator be used with 0 to 80L/min airflow regulator and/or 0 to 20L/min rotameter for mixing liquids. Consult with UO2 specialist regarding pump selection.

The unit was designed to automatically pull in and mix 25-72 L/min air with 300L – 600L water @ 150-400kPa via a 50mm dia inlet. Consult an Ultra-Oxygen specialist before installation. The unit must have a pressure differential of at least 100 kPa to work and it is recommended to have a pressure differential of +- 2.5 Bar to obtain designed performance.

APPLICATION: To increase dissolved oxygen in the water and to be able to maintain it on the required level. This unit requires 10L/min air into the system to operate on its best and was designed for all oxygen-to-water transfer applications. This extremely useful to bring down high Biochemical Oxygen Demand (BOD) and Chemical Oxygen Demand (COD) readings. It also now possible to increase Oxidation-Reduction Potential (ORP) in any water body, sustainably, quickly, and very cost-effectively.

PUMP SPECIFICATION: SV 10-M-50 – 220V – 0,75kW – Single Phase -11,2m Tot Head @ 0.1m3/min – 18,5kg – Discharge Bore 50mm – Stairs (SV-series) commercial and industrial wastewater submersible pump.

EXCLUDED FROM PRICE but AVAILABLE ON REQUEST: Consultancy, Delivery, Pumps, O2-O3 Generators, Flow meters, Cloud-base Water-View equipment providing DO-TEMP-EC-pH-COD-N readings, project-specific Enclosures, Floats, Mechanical, Electrical, and Plumbing work, and other client site specific requirements.

Price: $ 745 each

APPLICATION: To increase dissolved oxygen in the water and to be able to maintain it on the required level. This unit requires 10L/min air into the system to operate on its best and was designed for all oxygen-to-water transfer applications. This extremely useful to bring down high Biochemical Oxygen Demand (BOD) and Chemical Oxygen Demand (COD) readings. It also now possible to increase Oxidation-Reduction Potential (ORP) in any water body, sustainably, quickly, and very cost-effectively.

PUMP SPECIFICATION: SV 10-M-50 – 220V – 0,75kW – Single Phase -11,2m Tot Head @ 0.1m3/min – 18,5kg – Discharge Bore 50mm – Stairs (SV-series) commercial and industrial wastewater submersible pump.

EXCLUDED FROM PRICE but AVAILABLE ON REQUEST: Consultancy, Delivery, Pumps, O2-O3 Generators, Flow meters, Cloud-base Water-View equipment providing DO-TEMP-EC-pH-COD-N readings, project-specific Enclosures, Floats, Mechanical, Electrical, and Plumbing work, and other client site specific requirements.

Price: $ 745 each
