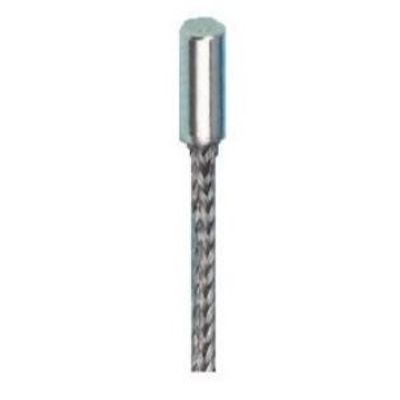

Thermo-Electra - MBA Bearing Shoe Thermocouple Sensor

SHARE
The MBA bearing shoe thermocouple sensor, measuring 3.2 x 8mm, is designed for precise temperature measurement in bearing applications. Engineered for versatility and reliability, this sensor caters to the demanding needs of industrial environments. The thermocouple sensor works efficiently in monitoring temperature changes, ensuring optimal performance and preventing overheating in machinery. There are various options for customization available to meet specific client needs in diverse environments. Thermo-Electra, with over 60 years of experience in sensor production and engineering, offers a comprehensive range of thermocouple sensors, including the MBD and MBC models. The company prides itself on developing in-house tailored solutions for temperature monitoring, thus providing robust solutions tailor-fit to client requirements, ensuring reliability, accuracy, and longevity in industrial applications.
Most popular related searches
Thermocouple sensor
precision temperature monitoring
temperature monitoring
thermocouple
bearing sensor
PFAS
surface monitoring
oil barrier
temperature monitoring system
pressure seal

Application
A range of high accuracy miniature embedded (also known as embedment) thermocouple sensors designed for surface temperature measurements in general industrial applications such as in bearing shoe applications to give a reliable indication of bearing wear and oil film breakdown through continuous monitoring of temperature. These tip sensitive thermocouples have an operating temperature range of -25°C to +250°C and can be supplied with a pressure tested oil seal barrier to prevent leakage. Standard assemblies are easy to install in drilled holes for general temperature sensing applications, whereas the spring loaded ‘top hat’ style assemblies are inserted into a milled hole with a retaining clip pushed down to compress the spring and retain the sensor against the surface being monitored.



Sensor
Thermocouple type: K, T, J, N or E
Duplex type: KK, TT, JJ, NN or EE
Accuracy: According to IEC 60584
Operating range: -25°C up to +250°C
Material: Stainless steel or phosphor bronze
Diameter: 1.5, 2.0, 3.0, 3.2, 4.0, 6.0 or 6.35mm
Length simplex sensor: 8.0mm standard, or contact us to specify
Length duplex sensor: 12mm standard, or contact us to specify



Cable
Twisted wires with external armour: PFA insulated twisted wires with stainless steel braiding (TA)
Cable with external armour: PFA cable jacket with external Stainless steel braiding (TTA)
Length: 1000mm standard, other lengths possible
Colourcode: IEC



Options

Explosion proof versions: ATEX / IECEx versions available, please consult us
Oil seal part: Standard 60 x 4.75mm
Other dimensions: Please consult us

You can remark the customisation in your quote
Productcode: MBA
Thermocouple type: …
Cable type TA or TTA: …
Colourcode: …
Cable length: …
