Thermo-Electra - MBB Bearing Shoe Thermocouple Sensor with Spring

Applications

A range of high accuracy miniature embedded (also known as embedment) thermocouple sensors designed for surface temperature measurements in general industrial applications such as in bearing shoe applications to give a reliable indication of bearing wear and oil film breakdown through continuous monitoring of temperature. These tip sensitive thermocouples have an operating temperature range of -25°C to +250°C and can be supplied with a pressure tested oil seal barrier to prevent leakage. Standard assemblies are easy to install in drilled holes for general temperature sensing applications, whereas the spring loaded ‘top hat’ style assemblies are inserted into a milled hole with a retaining clip pushed down to compress the spring and retain the sensor against the surface being monitored.

Sensor

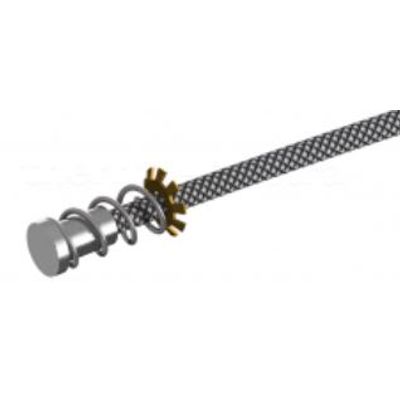

Mounting: Bearing thermocouple with spring and retaining clip
Thermocouple type: K, T, J, N or E
For duplex: KK, TT, JJ, NN or EE
Accuracy: According to IEC 60584
Operating range: -25°C up to +250°C
Material: Stainless steel
Diameter: 6.0 or 6.4mm
Simplex sensor body length: 6.0mm Standard, or contact us to specify
Duplex sensor body length: 12mm Standard, or contact us to specify

Compression Spring

Diameter: 6.0mm
Compressed length: Approx. 6.0mm
Material: Stainless steel

Cable

Twisted wires with external armour: PFA insulated twisted wires with stainless steel braiding (TA)
Cable with external armour: PFA cable jacket with external Stainless steel braiding (TTA)
Length: 1000mm standard, other lengths possible
Colourcode: IEC

Options

Explosion proof versions: ATEX / IECEx versions available, please consult us
Oil seal part: Standard 60 x 4.75mm
Other dimensions: Please consult us

You can remark the customisation in your quote
Productcode: MBB
Thermocouple type: …
Cable TA or TTA: …
Colourcode: …
Cable length: …
