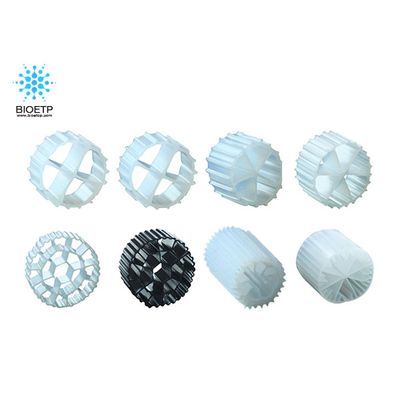

Bioetp - Model QY-PE02 -MBBR Media

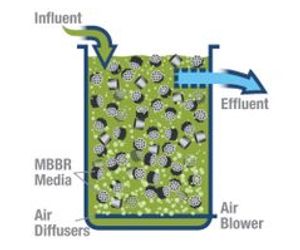

The Bioetp media is for application in Moving Bed Biofilm Reactor (MBBR Media) systems for the provision of a self-sloughing, auto-regulating attached growth biofilm treatment process. The media can be used for a single pass MBBR treatment process or in increase the effective capacity of existing activated sludge systems as an Integrated Fixed-film Activated Sludge (IFAS) process.Most popular related searches
integrated fixed-film activated sludge
MBBR media
moving bed biofilm reactor
moving bed biofilm reactor media
MBBR biofilm
fixed activated sludge
activated sludge treatment
activated sludge
biofilm reactor carrier media
activated sludge system
processes improve reliability, simplify operation, and require less space than traditional wastewater treatment systems.This technology provides cost-effective treatment with minimal maintenance since mbbr processes self-maintain an optimum level of productive biofilm. Additionally, the biofilm attached to the mobile bio-carriers within the system automatically responds to load fluctuations.
- More COD load: Up to 6~10kg/m3.d, about 2-4 times comparing with active sludge process.
- More NH3 load: Up to 1kg NH3-N/m3.d(35℃).
- Traditional active sludge process can only handle 0.1-0.3kg NH3-N/m3.d.
- Special material to strength bio-film adhesiveness;
- Large specific surface area, high porousness to ensure more biomass to grow;
- Unique structure and shape design according to hydromechanics to strength three-dimensional flow dynamics of carrier in water;
- Adding hydrophilic material and other trace elements to shorten the biofilm formation time, from 3 to15 days;
- Excellent impact strength and strong gas shear capacity;
- Easy to install, easy to cure, less space required.
In SBR process, mbbr media can do
- Increase processing capacity
- Combine nitrification and de-nitrification in one process
- Increase dissolved air efficiency
In AAO press, mbbr media can do
- Reduce hydraulic retention time
- Increase effluent water quality
- Increase tolerance to load fluctuations
- Improve performance in low temperature
