McGinley Orthopedics - Universal Drill Bit Guide

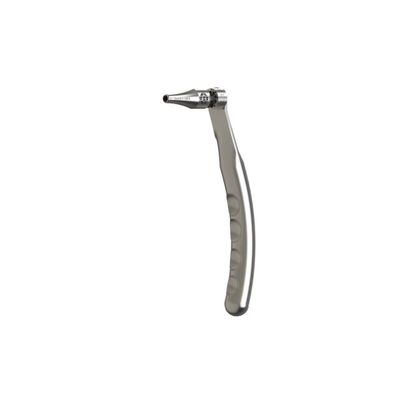

The Revolver® Universal Drill Bit Guide
Sterilization Tray
8 Tip attachments in the following lengths:

Small Diameter bit (1.0mm-2.5mm)
30 mm x 2.5 mm
60 mm x 2.5 mm
90 mm x 2.5 mm
120 mm x 2.5 mm

Large Diameter Bit (2.6mm-5.0mm)
30 mm x 5 mm
60 mm x 5 mm
90 mm x 5 mm
120 mm x 5 mm

• Rotating chamber adjusts to multiple drill bit diameters from 1.0mm to 5.0mm.

• Range of attachments extend the length of the guide up to 120mm for percutaneous applications.

• Non-slip tip provides stability on the bone

• Comfortable, ergonomic handle.

• Hand placement is safely away from the drilling point.

• Cost savings by eliminating numerous conventional guides.

• Ease of inventory management and sterilization.

• Reduces surgical time in switching and locating various guides.

• Little to no training required.

• Universal use with most standard drill bits.
