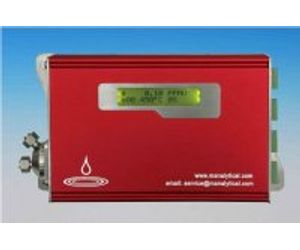

MCM - Model MicroView -Mini Online Hygrometer
Would you like to see your online moisture measurement process in the ultimate high-resolution detail? If you believe the old adage that “good things come in small packages” then we agree with you and the MicroView Mini Online Hygrometer is an outstanding example.
Like all MCM technology, the MicroView Mini Online Hygrometer is built around MCM’s Silicon Oxide sensor technology. Combining the powerful advantages of our sensor with powerful software configurations results in a moisture analyser that brings a new clarity to applications requiring precise control in the parts per million [ppmV] or parts per billion [ppbV] moisture range.
Small, simple to integrate, easy to operate, with accurate and reliable performance, the productivity gain of the MicroView Mini Online Hygrometer has been proven to add significant operational and commercial advantages to our clients’ processes.
Available with a range of differing measurement configurations, from 0.1 ppbV to >6000 ppmV, the MicroView Mini Online Hygrometer provides a level of detail that puts you in charge of your process. In short, it provides real-time data and a level of accuracy unattained by any other technology.
The MicroView Mini Online Hygrometer product line has developed a deserved reputation for quality data, simplicity of use, reliable operation and low-cost of ownership – key factors that make this model the first choice for gas analysis professionals around the world.
For measurements requiring IECEx / ATEX / UKEX certification, please refer to our range of hazardous area hygrometers including online analysers for natural gas, LNG, petrochemical and hydrogen processes.
Sensor Technology:
Silicon sensor, temperature controlled
Measurement Range:
0.1 to 100 ppmV (lower detection limit <0.1 ppmV)
0.1 to 3000 ppbV (lower detection limit 0.1 ppbV)
1 to 1000 ppmV (lower detection limit <1 ppmV)
5 to 6000 ppmV (lower detection limit <5 ppmV)
Ranges in °C dewpoint are available – please enquire.
Diagnostics:
Automatic configuration checks on start-up
Automatic, periodic self-test features during normal operation to ensure that optimal performance in maintained
Calibration:
Multi-point, in ppbV or ppmV (ISO17025 optional)
Dimensions:
237mm wide x 108mm high x 50mm deep (“Standard” model)
296mm wide x 212mm high x 96mm deep (“Trace” model)
Weight:
1.00kg (“Standard” model)
3.15kg (“Trace” model)
The brand new MicroView Mini Hygrometer combines MCM`s key performance advantages in an unbeatable entry-level transmitter.
The MicroView Mini is ideal as a stand-alone transmitter, or as the keystone of a more complex system solution.
- Temperature Controlled Silicon Sensor transfers laboratory accuracy in to the field, offering a Transfer Standard instrument with unrivalled speed of response.
- Automatic and manual Push Purge Sensor drydown for rapid response and elimination of hysteresis.
- Multiple inputs, outputs and alarms allow the MicroView Mini to be used in system configurations.
- Sensor Type : Silicon Sensor, Temperature Controlled to 46°C
- Operating Ranges : 0.1 to 100 ppm[V], 1 to 1000 ppm[V]. Other ranges and scales available upon request.
- Speed of Response : Full scale ‘wet’ to ‘dry’ in
- Diagnostics : Automatic and manual Push Purge feature. Push Purge aids sensor drydown, confirms that the senor and electronics are operational and highlights the presence of contamination. Push Purge confirms if the speed of response of the analyser is maintained, validates readings on-line and removes hysteresis before each measurement.
- Inputs / Outputs : 4 inputs / outputs (including 4-20mA and RS485) for maximum flexibility
- Alarms : 4 user definable alarms
