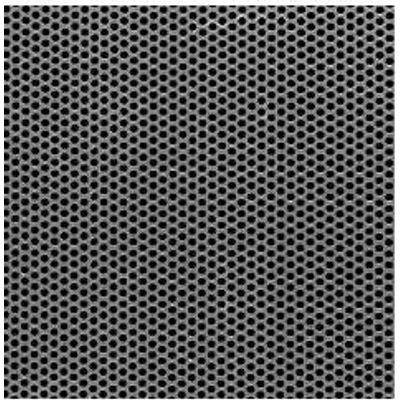

Mcnichols - Model 1715533248 -Round Perforated Metal
McNICHOLS® Perforated Metal, Round, Aluminum, Alloy 3003-H14, Mill Finish, .0320" Thick (20 Gauge), 0.117" Round on 0.156" Staggered Centers, 0.039" Bar Width, 47.44 Holes Per Square Inch (HPSI), Minimum Solid Margins Both Sides of Sheet Parallel to Length of Sheet, Holes Sheared Through Both Ends of Sheet Parallel to Width of Sheet, 51% Open Area. ITEM 1715533248 - 48" x 96" - In-Stock!
- Item Number 1715533248
- Product Line Perforated Metal
- Hole Type Round
- Primary Material Aluminum (AL)
- Alloy, Grade or Type Alloy 3003-H14 (3003H14)
- Material Finish Mill Finish
- Gauge/Thickness .0320" Thick (20 Gauge)
- Hole Pattern 0.117" Round on 0.156" Staggered Centers
- Hole Size (Diameter) 0.117"
- Hole Centers 0.156"
- Bar Width 0.039"
- Hole Arrangement 60° Staggered Centers
- Holes Per Square Inch (HPSI) 47.44
- Straight Rows Parallel to Length of Sheet
- Margins Parallel to Width Sheared Through Both Ends
- Margins Parallel to Length Minimum Solid Both Sides
- End Pattern Sheared Through Both Ends
- Percent Open Area 51%
- Weight 0.22 Lbs./Square Foot
- Product Form Sheet
- Drawings CAD Drawing - PDF
- CAD Drawing - DWG
- Sizes (Width x Length)
- 48" x 96" (Cut Sizes Available)
McNICHOLS carries the largest inventory of Perforated Metal products in North America with a vast selection of sizes, gauges and hole types available. In both high-end and industrial settings, Perforated Metal brings strength and style to enclosures, partitions, sign panels, guards, screens and other structures. This dynamic product line offers ventilation, versatility and a high strength-to-weight ratio. Perforated Metal is also an excellent product for filtration (sound, liquid, light, etc.) applications. McNICHOLS stocks Perforated Metal in a variety of materials including Aluminum, Carbon Steel, Galvanized Steel, Stainless Steel and even Plastic!
