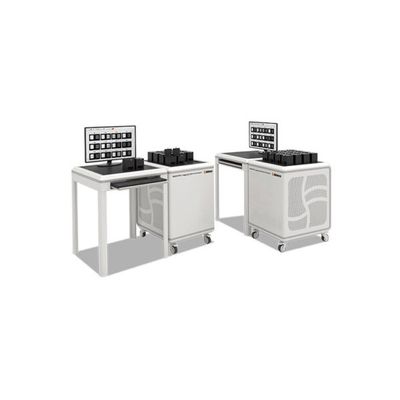

McScience - Model M6000 PIXX -Imaging & Lifetime Test System

SHARE

M6000 PIXX Imaging & Lifetime Test System periodically measures the electroluminescence image while driving display devices such as OLED, QLED, Micro and Mini LED, and evaluates the variation of luminance, structural deformation and uniformity through the device life cycle, in addition to the conventional display device lifetime tests including voltage and current measurement.

Most popular related searches
luminescence analysis
luminescence

#Multi-Channel #Imaging #Uniformity #Lifetime # Auto-Focusing #V(λ) Filter

  • Display Cell / Panel / Module
  • Scalable Multi-Channel Test System
  • Lifetime Test / Uniformity / Aging / I-V Scan
  • Imaging Test / 9-section Analysis / SSIM
  • Auto-Focusing / V(λ) Filter
  • CC / CV / PC / PV / PCV Operation
  • Thermal Chamber / ThermoStation

Special features are :

  • Scalable multi-channel system for the long-term imaging & lifetime measurements of display devices
  • Compact 12-bit high-resolution imaging unit built in each test channel with V(λ) Filter and fast auto-focusing module
  • Various luminescence uniformity analysis including standard 9-Section non-uniformity and structural similarity (SSIM)
