MD50 - Water Monitoring - Handheld Photometer

Boiler Water
Cooling Water
Disinfection Control
Drinking Water Treatment
Food and Beverage
Galvanization
Raw Water Treatment
Waste Water Treatment

Optics: LED, spectrometer sensor, interference filter (selected variants only)
Light Source: LED
Wavelength: Variant specific (415, 445, 480, 515, 530, 555, 590, 630, 680)
Photometric Range: 0 - 3 Abs
Photometric Accuracy: 3 % FS (T = 20 °C – 25 °C)
Suitable Vials: Round Cuvettes 13 mm, Round Cuvettes 16 mm, Round Cuvettes 24 mm
Display: Backlit LCD
Interfaces: USB-C, NFC (Near Field Communication)
Data Transfer Format: .csv
Operation: Foil keypad
Auto – OFF: Yes
Programmability: yes with PC software
Calibration: Factory and user adjustment - return to factory adjustment possible at any time
Updates: Firmware and methods update
Internal Storage: Internal ring memory for 100 data records
Power Supply: 2 x AA batteries Alkaline Batteries (LR6) 3V DC / 55mA
Battery Life Time: approx. 5000 measurements (without backlight)
Portability: Portable
Degree of Pollution: 2
Maximum altitude above sea level: 3500 m
Environmental Conditions: 5 - 50 °C at a relative humidity of 30 - 95 % (non-condensing)
Protection Class: IP 67
Compliance: CE
Languages Full User Manual: English, German, Spanish, French, Portuguese, Italian, Dutch, Turkish, Chinese
Dimensions: 155 x 76 x 45 mm
Weight: 247 g

• Robust Design
  The MD50 is built to last. Its rugged industrial design, complete with rubber-protected sides and an IP67 rating, ensures unmatched durability and reliability even in demanding environments.
• Accurate, Reproducible Results
  The innovative optical system of the MD50 delivers exceptional accuracy and speed, ensuring precise readings in record time.
• Factory Programmed Methods
  All MD50 instruments come with pre-programmed methods for different types of reagents. Simply select the test you need, prepare your sample, and test! To simplify test selection, you can choose the reagent type from the settings and display only your desired methods in the methods list.
• User Calibration and User defined Method
  A one-point calibration is possible with the MD50. The instrument automatically saves the calibration protocol in the logs along with the calibration factor. All user-calibrated methods are displayed with a calibration icon on the screen. Can't find the method you need? The MD50 also allows you to program a user-defined method using PC software.
• One-Time-Zero Function
  Save time by zeroing the instrument once for each sample. When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require re-zeroing. You can also activate or deactivate the OTZ function for all methods in the settings.
• Automatic Data Storage
  The MD50 automatically stores the last 100 readings and protocols with a time and date stamp. Results remain in storage even during a battery exchange.
• Data Transfer

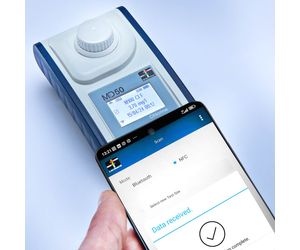

  The MD50 offers smooth and effortless data transfer. You can transfer data to the AquaLX® app via NFC or use a USB cable to transfer data to PC software. Data can also be exported in CSV format for programs like Excel.
• Ergonomic Design
  Whether you're using the MD50 in the field or in the lab, its design makes it easy to handle and view the display. In the field, the compact size and side protections ensure a firm grip during use. In the lab, rubber feet on the bottom of the housing eliminate the need for two-handed operation or chasing your instrument around the workbench.
• GLP Compliance
  To ensure data quality and integrity, the MD50 creates and saves a protocol for each change made during operation.

2-year Warranty

MD50 Chlorine, tablet reagents
Chlorine HR 2 PP 0.1 - 10 mg/L Cl2
Chlorine HR T 0.1 - 10 mg/L Cl2 a)
Chlorine L 0.02 - 4.0 mg/L Cl2 a)
Chlorine PP 0.02 - 2 mg/L Cl2 a)
Chlorine T 0.02 - 6.0 mg/L Cl2 a)

MD50 Chlorine Liquid
Chlorine HR 2 PP 0.1 - 10 mg/L Cl2
Chlorine HR T 0.1 - 10 mg/L Cl2 a)
Chlorine L 0.02 - 4.0 mg/L Cl2 a)
Chlorine PP 0.02 - 2 mg/L Cl2 a)
Chlorine T 0.02 - 6.0 mg/L Cl2 a)

MD50 Chlorine, powder reagents
Chlorine HR 2 PP 0.1 - 10 mg/L Cl2
Chlorine HR T 0.1 - 10 mg/L Cl2 a)
Chlorine L 0.02 - 4.0 mg/L Cl2 a)
Chlorine PP 0.02 - 2 mg/L Cl2 a)
Chlorine T 0.02 - 6.0 mg/L Cl2 a)

MD50 Chlorine HR (potassium iodide)
Chlorine HR (KI) T 5 - 200 mg/L Cl2
Hypochlorite T 0.2 - 16 % NaOCl

MD50 Chlorine dioxide, tablet reagents
Chlorine dioxide PP 0.04 - 3.8 mg/L ClO2
Chlorine dioxide T 0.04 - 11 mg/L ClO2

MD50 Chlorine dioxide, tablet reagents and powder reagents
Chlorine dioxide PP 0.04 - 3.8 mg/L ClO2
Chlorine dioxide T 0.04 - 11 mg/L ClO2

MD50 Hazen/A.P.H.A.
Hazen 24 10 - 500 mg/L Pt

MD50 Ozone, tablet reagents
Ozone PP 0.015 - 1.2 mg/L O3
Ozone T 0.02 - 2 mg/L O3

MD50 Ozone, powder reagents
Ozone PP 0.015 - 1.2 mg/L O3
Ozone T 0.02 - 2 mg/L O3

MD50 Urea
Urea T 0.1 - 2.5 mg/L Urea
Urea T 0.2 - 5 mg/L Ureai)

MD50 Suspended solids
Suspended solids 24 10 - 750 mg/L TSS

MD50 Molybdenum, tablet reagents
Molybdate HR PP 1.6 - 40 mg/L Mo
Molybdate LR PP 0.05 - 3 mg/L Mo
Molybdate T 1.5 - 30 mg/L Mo

MD50 Molybdenum, powder reagents
Molybdate HR PP 1.6 - 40 mg/L Mo
Molybdate LR PP 0.05 - 3 mg/L Mo
Molybdate T 1.5 - 30 mg/L Mo

MD50 Copper, tablet reagents
Copper PP 0.05 - 5 mg/L Cu
Copper T 0.05 - 5 mg/L Cua)
Copper VLR PP 2 - 210 µg/L Cu


MD50 Copper, powder reagents
Copper PP 0.05 - 5 mg/L Cu
Copper T 0.05 - 5 mg/L Cua)
Copper VLR PP 2 - 210 µg/L Cu

MD50 Phosphate, tablet reagents
Phosphate LR T 0.05 - 4 mg/L P
Phosphate PP 0.05 - 2.5 mg/L PO4

MD50 Phosphate, powder reagents
Phosphate LR T 0.05 - 4 mg/L P
Phosphate PP 0.05 - 2.5 mg/L PO4

MD50 Monochloramine, powder reagents
Chloramine (M) PP 0.02 - 3.27
Chlorine (free) and Monochloramine 0.02 - 3.27 mg/L Cl2
