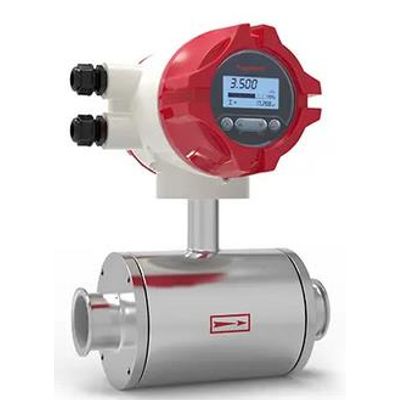

Meacon - Model MIK-LDG -Sanitary Electromagnetic Flowmeter for Food Processing

• Accuracy:±0.5%(Flow speed > 1m/s)
• Reliably:0.15%
• Electric conductivity: Water: Min. 20μS/cm

Other liquid:Min.5μS/cm

• Flange:ANSI/JIS/DIN DN15…1000
• Ingress protection:IP65

• Product: Sanitary type electromagnetic flowmeter
• Model: SUP-LDGS
• Diameter nominal: DN15~DN1000
• Nominal pressure: 0.6~4.0MPa
• Accuracy: ±0.5%,±2mm/s(flowrate<1m/s)
• Repetitiveness: 0.2%
• Liner material: PFA, F46, Neoprene, PTFE, FEP
• Electrode material: Stainless steel SUS316, Hastelloy C, Titanium, Tantalum, Platinum-iridium
• Medium temperature: Integral type: -10?~80?
• Split type: -25?~180?
• Ambient temperature: -10?~55?
• Power supply: 100-240VAC,50/60Hz / 22VDC—26VDC
• Electrical conductivity: Water 20μS/cm other medium 5μS/cm
• Ingress protection: IP65, IP68(optional)
• Product standard: JB/T 9248-2015

The working principle of the electromagnetic flowmeter is based on Faraday’s law, which measures conductive media with a conductivity greater than 5μs/cm and a flow range of 0.2 to 15 m/s. An electromagnetic flow meter is a volume flow meter used to measure the flow rate of liquid through a pipeline.

The measurement principle of a magnetic flowmeter can be described as: when a liquid passes through a pipe with a diameter of D at a flow rate of v, the magnetic flux density generated by the excitation coil is B, and the following electromotive force E is proportional to the flow rate v:

Electromagnetic flowmeters have been used throughout industries for more than 60 years. These meters are applicable for all conductive liquids, such as: Domestic water, industrial water, raw water, ground water, urban sewage, industrial wastewater, the processed neutral pulp, pulp slurry, etc
