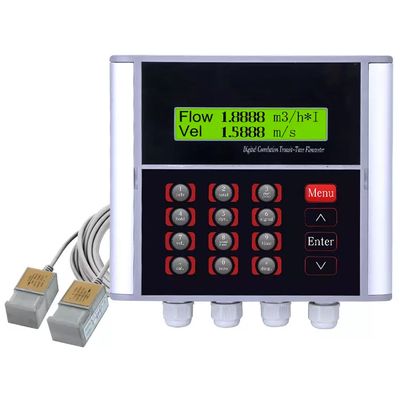

Meacon - Model SUP-1158-J -Wall Mounted Ultrasonic Flowmeter

SUP-1158-J ultrasonic flowmeter uses advanced circuit design coupled with excellent hardware designed in English for liquid flow detection and comparison testing in pipes. It has the characteristics of simple operation, convenient installation, stable performance and long lasting life.

• Pipe diameter: DN25-DN600
• Accuracy: ±1%
• Power supply:  10~36VDC/1A
• Output: 4~20mA, RS485

• Product: Ultrasonic flowmeter
• Model: SUP-1158-J
• Pipe size: DN25-DN600
• Accuracy: ±1%
• Output: 4~20mA, 750Ω
• Communication: RS485, MODBUS
• Flow rate: 0.01~5.0 m/s
• Working: Convertor: -10°C~50°C;
• temperature: Flow Transducer: 0°C~80°C
• Working humidity: Convertor:99%RH;
• Display : 20×2 LCD English letters
• Power supply: 10~36VDC/1A
• Case material: PC/ABS
• Line: 9m(30ft)
• Handset weight: Transmitter: 0.7Kg; Sensor: 0.4Kg
