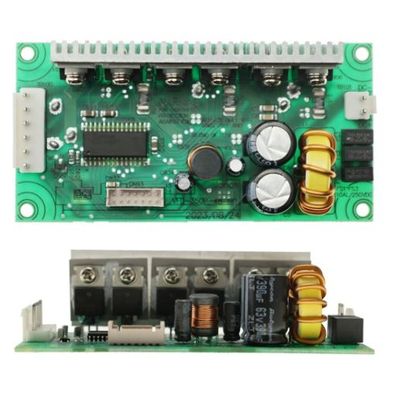

MEAN WELL - Model VFD-150P-48 -150W 48V DC Input Variable Frequency Drive Module

The VFD-1 50P-48 is an universal variable frequency drive power module providing integrated 3-phase switches with gate drivers and basic VFD sensors such as three phase output current and temperature sensors. This product can be implemented for a three phase motor drive solution by coordinating with an external motor drive controller in logic level and analog I/O. The three phase motor output is supported up to 55Vdc with 200% peak current capability. The compact size of 4"x2"and fanless design makes it easy to be integrated into all kinds of motor system. The VFD-150P-48 is suitable for three-phase motor drive, such as BLDC, Induction motor, and SynRM applications.
