Ados - Model FlexADOS 914 CP -Measuring, Control and Warning Unit for Sensors
FromADOS GmbH

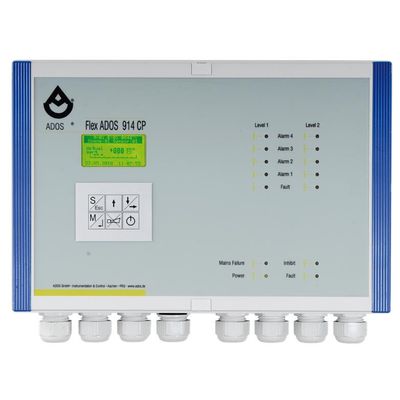

The FlexADOS 914 CP is a measuring, control and warning unit for gas sensors. It continuously monitors the ambient air and provides an early warning of harmful, explosive and non-flammable gases and vapours. Together with the 592 TOX gas transmitters, FlexADOS 914 CP fulfils VDI guideline 2053 from December 2014 and also EN 50271.
Most popular related searches
building management system
wastewater treatment plant
gas cooler
oxygen concentrator
liquid storage facility
laboratory refrigerator
building control
gas sensor
gas transmitter
ammonia monitoring
- Garages and tunnels
- Chemicals industry
- Paint and varnish manufacturing
- Liquid gas storage facilities
- Laboratories
- Refrigerated warehouses (ammonia monitoring)
- Refineries
- Measurement of oxygen concentration
- Gas-powered boilers
- Wastewater treatment plants
- and much more
- Up to 12 analogue 4...20mA sensors are evaluated (GTR 210, LCTR 903, TOX 592)
- Graphic LCD display to show content values, mean values and faults in plain text
- Indicator for operation, malfunction, maintenance, power failure
- Simple menu-guided setting of the device parameters using 6-part keyboard
- Five alarm thresholds per sensor, independently adjustable from 10 to 90% of the measuring range
- Averaging from 1 to 60 minutes possible, 2 levels (fan areas) can be displayed
- Maximum of 14 potential-free changeover contacts to control further warning and control facilities
- Potential-free changeover contact for malfunction,maintenance and power failure
- As an option: Building control system connection for data transfer (measuring value and state)
- Plastic wall housing (IP 54)
- High operating reliability
- Low power consumption
- Simple assembly
- Uninterrupted electricity supply possible
Horn, warning light, blinker lamp, recorder, emergency power unit UPS 2000-24V, gas cooler, gas inlet, and much more. Additional accessories are offered on request depending on the measuring task.
Optional data interfaces for building management systems (BMS):
- LONWorks
- Modbus RTU
- Profibus
- ModBus TCP
- TCP/IP (Webserver)
