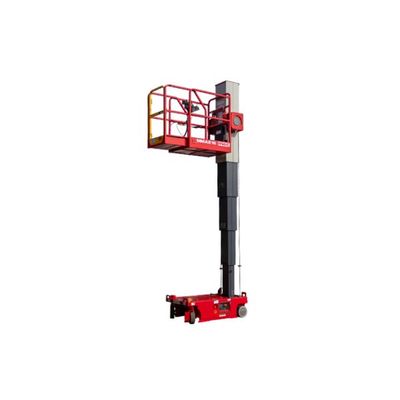

MEC - Model MMAE16 -Vertical Mast Lifts

• 16 ft. Platform Height
• 30 in. Machine Width
• 57 in. Machine Length
• 500 lbs. Platform Capacity
• 2,170 lbs. Machine Weight

Work Area

• Roll-Out Deck Extension with incremental Locking Positions
• Lanyard Attachments (2)
• Standard Full Heiight Swing Gate

Performance

• All-Electric – Optimal in Battery Duty Cycle
• Fully Proportional Drive and Lift Controls
• Zero Hydraulic Oil

Power

• 24v 115Ah AGM Electric Power
• Battery Charge Indicator

Serviceability

• Lubrication-Free Bearings
• Parking Brake Release for Winching

Safety

• Dedicated Emergency Lowering Battery
• Emergency Shut-Off at Platform and Lower Controls
• Non-Skid Metal Deck Construction
• Descent Alarm
• Drive Speed Interlock
• Multi-Axis Tilt Sensor

Other Features

• Removable Upper Controls
• Voltage-Compensating Fully-Automatic Battery Charger
• Hour Meter
• Machine Tie Downs
• Non-Marking Tires
• All Motion Alarm
• Fork Lift Pockets
• Flashing Beacon (Continuous)

• Up to 22 ft. (6.7 m) Platform Height Indoors and 18 ft (5.5 m) Working Height Indoors
• Direct Electric Drive for Greater Duty Cycle and Smoother Controls
• AGM Maintenance-Free Batteries Standard
• Lifetime Roller Mast Construction for Maintenance-Free, Smooth Operation
• Lowest Ground Pressure with Wide Non-Marking Tires
• 500 lbs. Unrestricted Platform Capacity
• Glide-Out Deck Extension with Lift-Up Gate
• Rugged Steel Platform and Gate Construction

• 900W Inverter
• Tool Tray
• Second Year Extended Warranty
