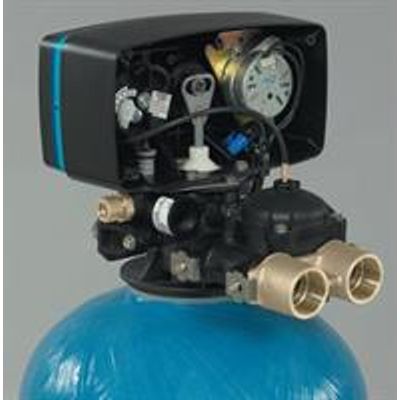

Lenntech FleckModel 5600 -Mechanical Control Valve

SHARE

Features: Simple mechanical design is easy to use. Two valve body designs: one for downflow regeneration and one for upflow (covers every valve in the 5600 family - quick access to all internal components). Injector/drain modules containing the brine valve, flow controls, and injector are removable from the valve`s exterior. Ruggedly-built timer is designed with heavy-duty 3/8" wide plastic gears. 5600 controls are user-friendly. Non-corrosive, UV-resistant, fiber-reinforced polymer valve body. Economical - small annual power consumption; keeps the time and activates the piston/valve mechanics with a single motor. Designed with double backwash.

Most popular related searches
  • Bypass valve (Fiber-reinforced polymer or stainless steel)
  • Low water use piston (uses as little as 29 gal./regeneration)
  • Choice of 7 or 12 day clock timers
  • Filter or softener control valve
  • Upflow or downflow regeneration control valve
  • Valve Specifications
    • Valve material: Fiber-reinforced polymer
    • Inlet/ Outlet: 3/4", 1", 1-1/4"
    • Cycles: 7
  • Flow Rates (50 psi Inlet) -ValveAlone
    • Continuous (15 psi drop): 20GPM
    • Peak (25 psi drop): 26GPM
    • Cv (flow at 1 psi drop): 5
    • Max. backwash (25 psi drop): 7GPM
  • Regeneration
    • DovMiflow/Updow: Both
    • Adjustable cycles: Brine fill only
    • Time available: 180 minutes per cycle
  • Meter Information
    • Meter accuracy: .25-15GPM+/-5%
    • Meter capacity range (gal.): Standard: 125-2,125 Extended: 625 - 10,625
  • Dimensions
    • Distributor pilot: 13/16" or 1.05" O.D.
    • Drain line: 1/2" NPTF
    • Injector brine system: 1600
    • Brine line: 3/8"
    • Mounting base: 2-1/2"-8 NPSM
    • Heiqht from top of tank: 7"
  • Typical Applications
    • Water softener: 6"-12" diameter
    • Filters: 8"-10" diameter
  • Electrical rating
    • 24 v. 110 v. 220 v- 50 H;.60: Hz*
  • Additional Information
    • Estimated shipping weight: Time clock: 5 lbs Metered valve: 6 lbs.
    • Pressure: Hydrostatic: 300 psi Working: 20-125 psi
    • Temperature: 34°- 110°F
  • Approvals
    • NSF Standard 44 Certified
    • UL registered components
