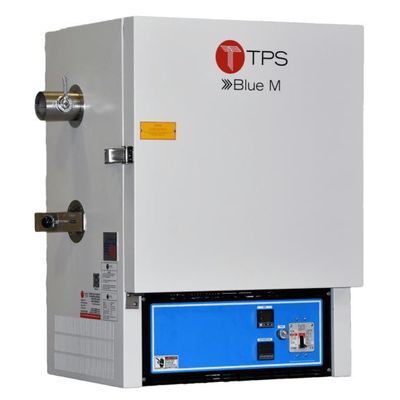

TPS - Model ESP400 Series -Mechanical Convection Oven
This small, cost-effective industrial oven provides reliable performance with horizontal airflow which offers excellent temperature uniformity and is an ideal selection for applications where there are multiple tiers of product arranged to allow air to flow horizontally from side to side. This economy oven features Blue M`s one-pass airflow system which allows incoming air to pass over the heaters and through the work chamber only once, if desired, enabling fast cool down or quickly venting non-hazardous fumes.
Most popular related searches
circular chart recorder
digital temperature controller
chart recorder
air intake
ASTM testing
hazardous fume
centrifugal blower
damper
centrifuge
blower
- Nickel-plated wire rod shelves
- Glass observation panel
- Floorstand
- Circular chart recorder
- Ability to stack two units vertically (stacking frame)
- Eagle Signal Model B856 Digital Process Timer
- 24 Hour / 7 Day Digital Timer - Grasslin FM1D
- Chart Recorder
- Alternate Temperature Controllers - Partlow 1166 & 1160 or Watlow F4T
- Alternate Overtemperature Protection-Partlow 1161+ High Limit Controller

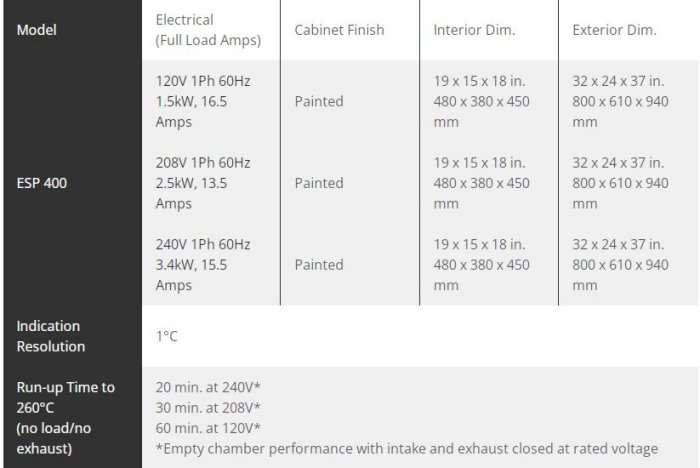

- Temperature range: 15°C (27°F) above ambient to 260°C (500°F)
- Control Accuracy: +/- 1.0°C (+/- 1.8°F)
- Resolution: +/-0.1°C (+/- 0.1°F)
- Workspace capacity: 2.8 cubic feet Heat-up time to 260°C (empty chamber with dampers closed):
- 20 Minutes (approximate) at 240 VAC
- 30 Minutes (approximate) at 208 VAC
- 60 Minutes (approximate) at 120 VAC
- Uniformity: Blue M can provide varying levels of uniformity; if you have a specific tolerance or specification which must be met, please contact us with your requirements so we can ensure the equipment is designed, tested, and adjusted to meet those requirements.
Features
- RKC RF100 Temperature Controller
- Centrifugal blower wheel
- Adjustable air intake and exhaust dampers
- Adjustable shelves - nickel-plated wire type with 7 shelf positions
- Fiberglass insulation to ensure safe cabinet skin temperature
- Heavy-duty door - double-wall, insulated construction
- Corrosion-resistant, stainless steel (type 304) interior
- All-welded, heavy-duty exterior with heavy-gauge, reinforced cold-rolled steel
- Baked on white powder-coated enamel finish on the exterior
- Every oven is fully assembled and individually factory tested
- Circuit breaker provided for ground fault protection as standard
- Easy to read digital LCD display
- Enhanced PID control
- Single setpoint
- Autotuning algorithm to calculate optimum set points and ramps
- Helps eliminate over and undershoot of temperature
- Overtemperature protection standard using CB100L or CB900L FM-approved controller with independent sensor and power
Benefits
- Horizontal airflow is ideal for thermal constancy and fast run-up and cool down rates
- Quick, quality product results are enabled by the One-Pass Airflow System
- LED display makes it easy to read setpoint and process variables
- Alert system protects overheating from occurring and automatically disconnects heater
Applications
- Aging
- Annealing
- ASTM Testing
- Curing
- Drying
- Photo Resist
- Solvents, Coatings, and Paint Curing
- Stress-Relief
Industries
- Aerospace
- Agriculture
- Automotive
- Defense
- Education
- Electronics
- Energy
- Government
- Medical
- Oil & Gas
- Pharmaceutical
- Research & Development
- Rubbers & Plastics
- Semiconductors
- Telecom
- Textiles
