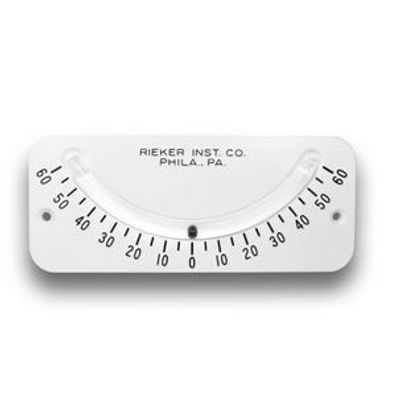

Rieker - Model 2055 -Mechanical Inclinometer
Our 2055 mechanical inclinometer is ±60 degree unit with 5 degree increments. The housing is made of rugged ballistic plastic, making these clinometers extremely tough for all types of environments and weather conditions. The glass tube and ball construction provides smooth roll for accurate measurements. With operating temperature ranging from -45°C to 82°C the 2055 is the perfect all-season inclinometer. The large, clear number and degree markings make it easy to get quick readings. This is a white unit with black markings.
Rieker manufactures rugged mechanical inclinometers using precision tube and ball construction with printed markings and customer specified color warning zones. All our tubes are filled with a proprietary damping fluid that controls the movement of the ball for a smooth and error free roll. The fluid combined with large, clear number and degree markings make it easy to get quick, accurate readings with this mechanical inclinometer under a wide variety of severe environmental conditions.
- Weight 6 oz
- Dimensions 6 × 2.5 × 0.375 in
- Application Antenna Positioning, Motor Grading, Platform Leveling, Roll Angle, Roll Over Early Warning, Vehicle Tilt Monitoring
- Number of axes One
- Backlit No
- Case Material Plastic
- Classification Mechanical
- Color Zones No
- Customizable No
- Industries Construction, Defense, Marine, Mining
- Measuring Range ±60 Degrees
- Tick Mark Increments 5 Degree
- Units of Measurement Degrees
- Color Black, White
- Operating Temperature -40°C to 75°C
