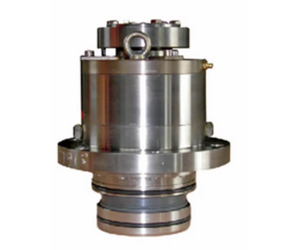

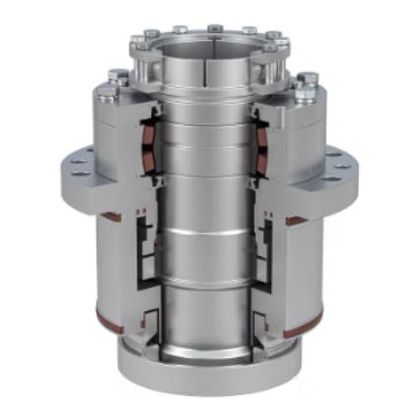

Double-acting mechanical seal liquid lubricated for slurry applications; Pair of product side seal rings extends into the vessel space; Surfaces are smooth and the design minimizes gaps to prevent dirty corners - thorough cleaning is possible; Sealing abrasive suspensions and sticky or crusty media (below liquid level, side entry installation); Sterile seal construction also available - any orientation possible
- Operating pressure: vacuum...16 bar (abs.)
- Vessel temperature: -50...+230 °C
- Shaft size: 40...300 mm
- Sliding speed: 0...5 m/s
MAIN DESIGN FEATURES
- Smooth surface, free of dead spaces
- CIP-/SIP (Cleaning in Place, Sterilization in Place) capable
- Sliding materials FDA conform
- Variant for sterile applications available
- ATEX certification on request
- Materials
- Seal faces: Silicon carbide, FDA conform
- Seat: Carbon graphite (atmosphere side) resp. Silicon carbide (product side), FDA conform
- Secondary seals and metallic parts acc. to application and customers` requirement.
FEATURES
- For top, side and bottom entry drives
- Seat at product side rotating
- Unbalanced
- Liquid-lubricated
- Double seal
- Independent of direction of rotation
- Cartridge unit
- With or without bearing available
- Petrochemical industry
- Chemical industry
- Pharmaceutical industry
- Food and beverage industry
- Mixers
- Dryers
- Mills
- Kneaders
- Reactors
- Pressure filters
