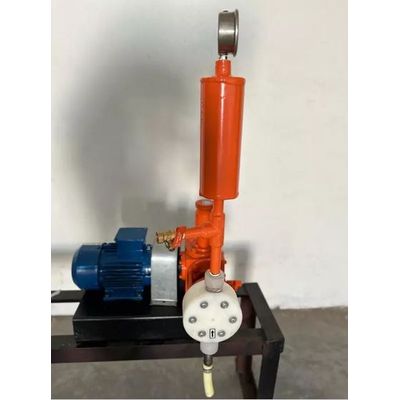

Premix - Mechanically Actuated Diaphragm Dosing Pump
The volume of liquid (Flow Rate) to be delivered can be varied by simple micrometric adjustment of the metering system. Premix metering pumps are positive displacement type, hence, are self-priming in operation. They have low NPSH requirement. And are capable of delivering precise volume of liquid in specified time.
Most popular related searches
diaphragm dosing pump
metering pump
diaphragm pump
metering system
dosing pump
mechanical diaphragm pump
mechanical dosing pump
diaphragm sealing
fouling
fouling control
Pump Design, Manufacturing & Performances Test as per International Standard of API 675*
Metering pumps have flow rate, which is:
- Independent of discharge pressure.
- Linear in proportion to stroke length.
- Digital in nature.
- Positive displacement type, hence are self-priming in operation
Key Design Features:
- Premix make PRMD type Diaphragm glandless pumps, with hermitically sealed Diaphragm allow leak free operation.
- Reproducibility (Repeatability) better than ± 2.5% of set point.
- Steady State metering accuracy of ± 1% of pump output, at single setting of stroke from 10% - 100% (Turn down ratio 10:1).
- Easily handles viscous fluids. They are compatible with most of fluids.
- Unlimited dry running capability
- Simplex and Multiplex arrangements of pumps available for universal use.
- Heating or cooling jackets for liquid head is also available.
- Very economical.
- PTFE Diaphragm.
- Remote control fouling is available.
- Easy to operate.
- Less maintenance.
