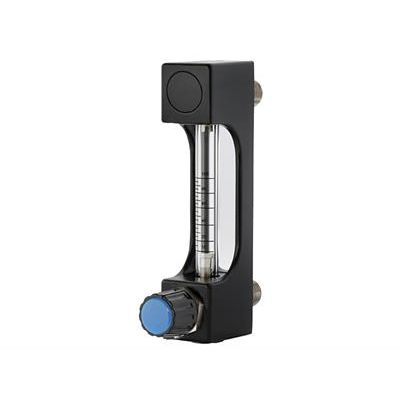

Mecon - Model Minix Series -Float-type Flow Meters

The Minix-series float-type flow meters are used to measure the volume of clear liquids and gas flows in closed pipelines. The integrated needle valve allows manual regulation of flow quantities. Standard scales are offered for liquids with a density of 1 kg/l and for air. For all other media measured, the scales are converted depending on the material values. Accordingly, the device is ideal for measuring very small and small quantities e.g. in panel or battery mounting.

• Plant and mechanical engineering
• Chemicals
• Laboratory equipment

• Reliability (long-term stability, service life)
• Can be used for liquids, gas (clear)
• Temperatures of measured media: -10 °C to +70 °C
• Measurement range limit for liquids: 0,1 l/h to 500 l/h (water: +20 °C)
• Measurement range limit for gas: 2,0 l/h to 8,000 l/h (air: +20 °C, 1.013 bar)
• Simple design, making it easy to install and maintain
• No auxiliary power required for local display
• Simple interpretation of measurements
• High repeat accuracy of the measurements
• Simple commissioning
• Low cost and simple measuring principle without auxiliary power
• No calming section
• Manufacturer’s application expertise
• Short lead times

• DIN ISO 228:G ¼ – G ½
• ANSI B1.20.1: NPT ¼" – NPT ½"
• Hose connector: 10 mm / 13 mm
• LW 10 / LW 13
