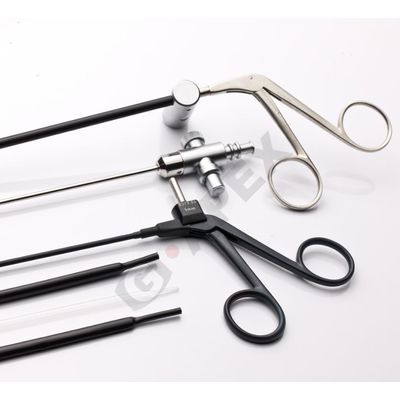

G-Apex - Model MTA -Medical Grade Semi-Rigid PVDF Heat Shrinkable Tubing
The MTA Medical Grade Semi-Rigid PVDF Heat Shrinkable Tubing is engineered using USP Class VI medical-grade polyvinylidene fluoride. It is optimized for environments with elevated temperatures, maintaining stable performance against chemical exposure such as alcohol, providing high mechanical abrasion resistance. Known for its exceptional insulation properties and smooth surface, it is particularly used in medical devices requiring rigorous insulation protection. This tubing meets ISO 10993 and RoHS specifications, offering standard colors in black and clear, with customization available upon request. It represents a critical component in maintaining the integrity of electrical interconnects within medical settings, where both performance and compliance with medical standards are paramount.
MTA heat shrinkable tubing is made of the USP Class VI medical-grade polyvinylidene fluoride (PVDF) material.lt is suitable for the operation in a high temperature environment, and has stable performance to chemical substance such as alcohol as well as excellent mechanical abrasion resistance. It can be designed for the insulation protection of medical devices which require smoothness and high insulation performance.
- Continuous operating temperature: -55°C ~ 175°C
- Minimum shrink temperature: 155=C
- Full recovery temperature: Above 175"C
- Shrink ratio: 2:1
- Abrasion and high temperature resistance
- High flame retardant and excellent resistance performance to chemical corrosion
- Excellent physical, chemical and electrical performance
- Excellent electrical insulation properties
- Compatibility with gamma rays and ETO sterilization
- Double plastic bags and plastic spool package
- ISO 10993 and RoHS certificated
