medinBlender - Model 1090 -Gas Blender for Compressed Air and O2

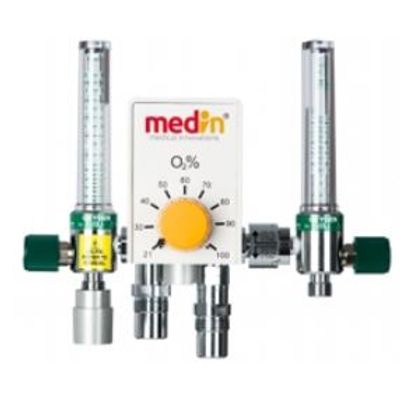

The medinBlender1090 is a mechanical gas blender with two integrated flow meters (0-15 L/min and 0-3.5 L/min) for nCPAP, BubbleCPAP therapy and high-flow applications in neonatology and pediatrics as well as conventional oxygen therapy in adults. The 3.5 LPM flow meter enables precise and finely adjustable oxygen and flow values which are especially important during use on premature infants and newborns. The inlet pressure for air and oxygen is between 3.5 and 6 bar (50psi). Connection to the central gas supply and to oxygen and compressed air bottles is possible. The bleed flow function required in the low-flow range can be switched off in standby or in the high-flow range.
