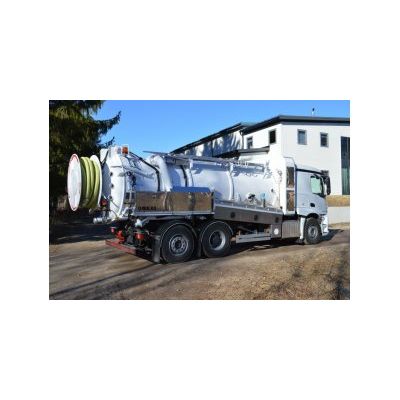

MASKO Combi - Medium Combined Dewatering Unit

Tank:

• Cylindrical in stainless steel (304).
• Volume: 13 500 L in 3 compartments.(2 970 gallons)

High pressure jetting pump:

• Hydraulically driven.
• Type: Pratissoli 3 cyl. piston pump.
• Capacity: 122 L/min 150bar. (27gallons/minat2 175 psi)
• Mounted in stainless steel cabinet.

Suction hose reel:

• Pivotal storage reel.
• Holds 50m 3" suction hose.

Storage:

• Cabinet on the left side with interior lighting.
• Everything is in polished stainless steel that follows the tankwhen tipping.
• The cabinets are equipped with plastic lining at the bottom and lockable rubber sealed doors.

Jetting hose reel:

• Hose reel holds 60m 1/2" jetting hose.
• Hydraulically driven. The reel is mounted on the right side and protected in a stainless steel cabinet.

Vacuum pump:

• Hydraulically driven.
• Capacity: 15 500 L/min. (550 cfm)
• Type: Vane.
• Integrated secondary tank designed to achieve optimal effect and to protect against over suction.

Lights:

• 4 Work lights.
• 2 Extra reversing lights. 2 Flashing beacons.

Available options:

• Adjustable water pressure from radio.
• Heated cabinets for jetting hose reels, jetting pumps and tool cabinets.
• Heated valves.
• LED hazard beacons.
