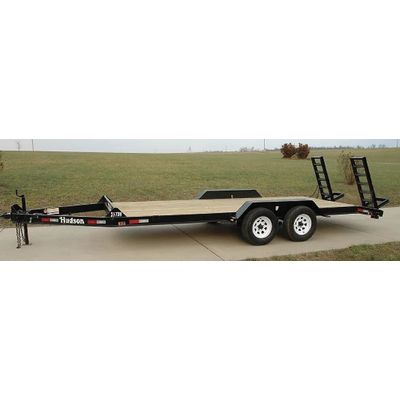

Hudson Bros. - Model HSE Deluxe - 3 1/2 Ton Capacity (14) -Medium Duty Equipment Trailer
Standard Specifications: GVWR: 8,950 lbs. Empty Weight: 1,950 lbs. Maximum Payload: 7,000lbs. w/adequate hitch load. Overall Length: 20`. Deck Length: 14`. Overall Width: 96". Deck Width: 78". Deck Height: 23". Loading Ramp: 4` Cleated Fully Adjustable. Hitch: Adj. 2 5/16" Ball Coupler. Hitch Height: 22" to 26". Fenders: Diamond Plate. Axles: (2) 3,500 lb. E-Z Lube Dexter w/Brakes. Suspension: Multi-Leaf Spring. Brakes: Electric/10" x 2 1/4" w/break-a-way. Wheels: 14" x 5" White Spoke 5-bolt. Tires: ST215/75R14" 6-PR. Jack Capacity: 5,000 lb. w/Foot. Main Frame: 6" Channel @ 8.2#. Crossmembers: 3" Channel @3.5#. Decking: 2" x 8" Treated Pine. Tie Downs: 4" Stake Pockets. Lights: DOT approved LED. Colors: Yellow or Black.
HSE Deluxe 16` - HSE Deluxe 3 1/2 Ton Capacity 16`. HSE Deluxe 18` - HSE Deluxe 3 1/2 Ton Capacity 18`
LTBL - Lockable Toolbox Lid
TBB - Toolbox Bottom in Tongue
6WOD - 2" x 8" White Oak Deck
ASP - Additional Stake Pockets
6WSATG - 6` Wide Spring Assisted Tailgate
6WSSATG - 6` Wide Split Spring Assisted Tailgate
3R - 3rd Ramp
STR - Spare Tire & Rim
2BT - 2` Beavertail
CR - 10" Cargo Rail
JU5KTO7K - 7000 lb Jack
6WARL - Additional Ramp Length (1` Maximum)
WIR - Wood Insert Ramps
6W102 - 102" Wide w/82" Deck Width
NF - No Fenders
6WGN - Gooseneck w/Adjustable 2 5/16" Ball Hitch
NAH - Nonadjustable 2 5/16" Ball Hitch
2 1/2`IH - 2 1/2" Adjustable Eye Hitch
TC - Trickle Charger for Break-A-Way
HSB - Hydraulic Surge Brakes
STM - Spare Tire Mount
CO - Color Options: Red, Blue, Green, Kubota & Ditch Witch Orange
