Medium duty primary cleaners
Pre cleaners are designed to be installed at the head pulley to remove the bulk of carryback adhering to the belt after the natural trajectory of the conveyor has released the product. Sandvik"s range of pre cleaners are efficient and low maintenance units that will give outstanding service life in the most arduous conditions.

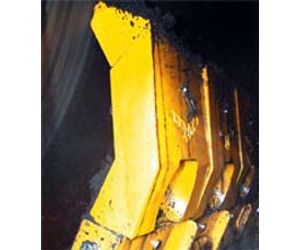

Supplied with Tungsten tips (polyurethane as an option). Designed for precleaning of the conveyor and generally removes product of greater than 0.5mm.
Features and values
- Utilises Sandvik Tungsten with 59% longer life than comparable brands.
- Each tip is connected to a separate rubber cusion for accurate tip tension.
- Self adjusting.
Key specifications
- Belt width : 500–1800 mm
- Pulley diameter : 250–1700 mm

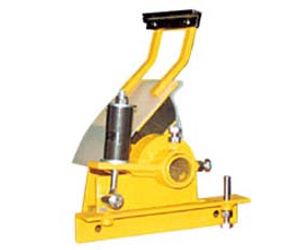

Supplied with Polyurethane blades. Designed for precleaning of the conveyor belt and generally removes product greater than 0.5mm. The Polyurethane blade is especially suitable for damaged belts or belts fitted with mechanical fasteners.
Features and values
- Self adjusting.
- Long life replaceable polyurethane blades.
Key specifications
- Belt width: 350–1800 mm
- Pulley diameter : 400–1000 mm

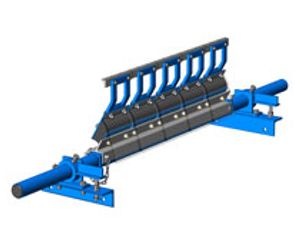

Multiblade cleaners that have proved their efficiency with several kinds of materials. Difficult contitions can be met with different kind of blade materials, from polyurethane to hard metal. Placement on drive pulley just below material flow.
Key specifications
- Belt width: 400-2000 mm
- Pulley diameter : 320-1000 mm
Reliable multiblade cleaner that meets the highest demands related to maintenance and cleaning efficiency. The blades, which can be chosen according to application from wide selection of materials, can be replaced very easily. Tensioning is automatically adjustable and can be monitored at service brigde or with electronical wear indicating system.
Key specifications
- Belt width: 400-2000 mm
