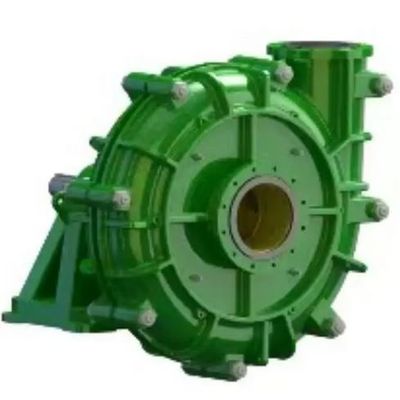

Lianran - Model LM -Medium Duty Slurry Pump
LM Medium Duty slurry pump series centrifugal slurry pumps and spare parts can fully interchange.These pumps are of heavy-duty construction, designed for continuous pumping of highly abrasive and corrosive slurries. They feature a wide choice of replaceable abrasion resistant metal or moulded elastomer casting liners and Impellers, which are all interchangeable within a common casting assembly.
Most popular related searches
slurry pump
centrifugal slurry pump
pump test
material testing
laboratory chemical
effluent handling
centrifugal pumping
material analysis
centrifugal pump
hydraulic testing

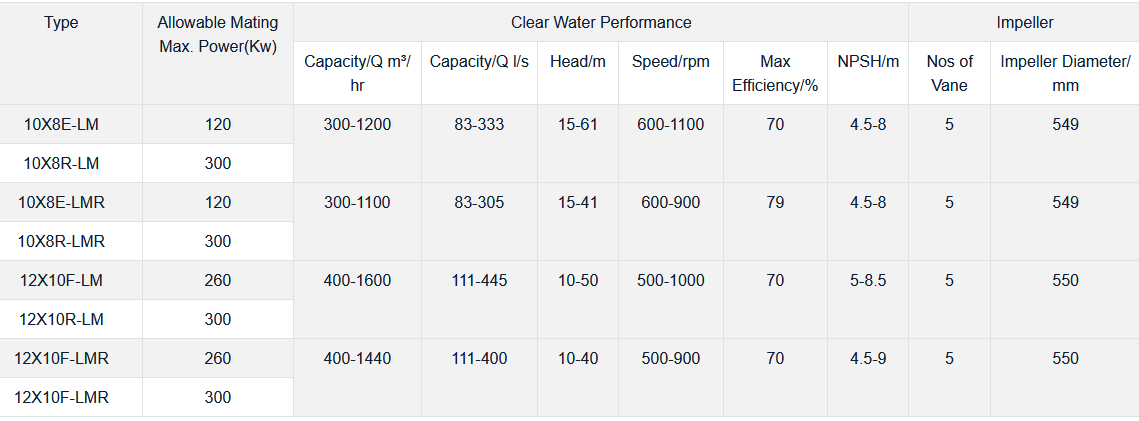

- Pump Type Centrifugal
- Drvie Type ZVz/CRz/CV/DC
- Power Motor / Diesel
- Discharge Size 8 inch
- Capacity 540-1228m³/h
- Head 15-61m
- Heavy-duty structure with through-bolt design for easy maintenance and reduced downtime
- Ductile iron fully lined casing provides durability, strength and long life
- Large-diameter, low-speed, high-efficiency impellers extend wear life
- Large, open internal passageways reduce internal speeds, maximizing service life and reducing operating costs
- Unique impeller design for the most difficult froth applications
- Minimal shaft / impeller overhang reduces shaft deflection and extends packing life
- Cartridge bearing assemblies can be maintained in a clean environment without disassembling the pump for reliable operation and prolonged bearing life
- Minerals Flotation Processing
- Electric Factory Coal Preparation
- Coal Washing
- Chemical Medium Processing
- Effluent Handling
- Salt and Sugar Industry
- Sand And Gravel Handling
We strictly adhere to the ISO9001 Standard and CE Certificate and other industry standards as requests.
We have Inspection center, which has the mechanical laboratory,chemical laboratory,measuring chamber of surveying and mapping,and others.We have more than 20 sets advanced equipment,with metal material testing and the production process quality monitoring,measuring instruments calibration and product research and development of surveying and mapping missions.
We set various check points along the whole production line,which throughout Raw Material,Charging Material,Surface and Heat Treatment checking,Material Analysis,Spare Testing and Pump Testing etc.
About the Pump Testing,the hydraulic performance test station we uses computer to complete the form test and the factory test.Test Bench Test System using the computer to accomplish the automatic control,automatic collection test parameters and real-time processing,the test data contains the whole test process of all kinds of pump and motor and test report could be output once the test finished.
