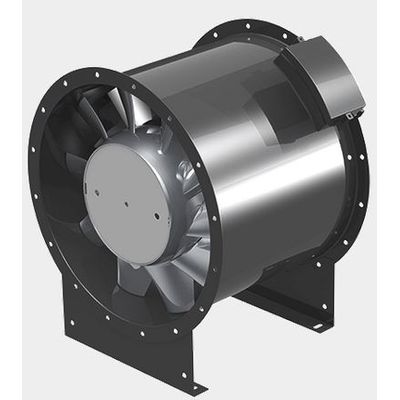

DLK - Model AANM -Medium Pressure Axial Fans

FromDLK Ventilatoren GmbH

SHARE

Medium pressure axial fans with outlet guide vanes. Direct driven.

Most popular related searches

Range: DN 315 – DN 2500
Application: supply and exhaust air up to 55°C or 120°C
Flow rate: up to 450.000 m³/h
Pressure: up to 4.000 Pa
Motor: frequency: 50Hz/60Hz, up to 90 kW
Surface: steel, coated/galvanized/stainless steel (V2A 1.4301 / V4A 1.4571)
Impeller: aluminium / blade angle adjustable at standstill
ATEX categorie: category 2 and 3, gas/dust
Drive: direct/belt drive
Accessories: various accessories
