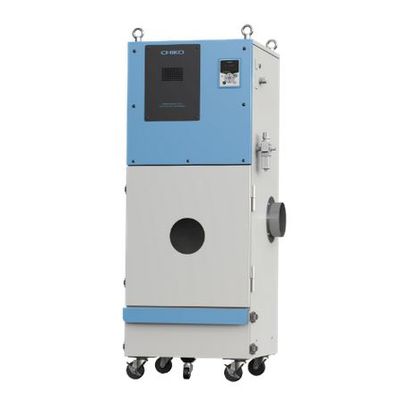

Chiko - Model CMP Series -Medium Pressure Dust Collector for Airflow Applications

SHARE

CMP series dust collectors are medium size with medium pressure / high air blower capability. Suitable for sucking in surrounding air by using a hood with large opening area or by branching to multiple hoses.

Most popular related searches
dust collector
filter cleaning
dust collection
high-pressure ducting
static electricity
cleanroom window
cleanroom
compressed air
HEPA filter
dust control
Easy dust disposal Dedicated antistatic plastic bag (garbage bag) is installed to ensure dust can be easily disposed of.
This material prevents static electricity being generated and minimizes scattering of dust when collected dust is withdrawn.

Antistatic plastic bag model: DP-1055-450E
Enhanced compatibility with options Complies with cleanliness class 1,000-100 HEPA filter can be installed with custom specifications. Suitable for clean room.

Inspection window wiper
Adhered dust can be removed by the wiper installed on the inspection window, making it easier to check the condition inside.

Exhaust flange
Exhaust can be directed outside by attaching a flange to the exhaust port.

Remote cable

(sold separately/model: Using MT-173-8 (3 m) enables remote operation of peripheral equipment.

  1. Operation input signal
  2. Operation pressure signal (DC1-5V)
  3. Filter clogging signal
  4. Remote-control operation switching input signal
  5. Operating signal
  6. Abnormality signal
  7. Change of operating level input signal (DC0-5V)
  8. Gnd
Operation ON/OFF
Change capacity level (air volume)

Primary filter The product uses a teflon microporous cylindrical filter. This is an effective filter for removing dust with pulses. Filter cleaning function [Pulse type] Filter cleaning is carried out using pulse air(compressed air)to ensure suction power is not diminished.With high efficiency motor installed Compact design achieved through installation of high efficiency PM motor.Installation space is approximately half the amount required for a commercially available three-phase induction motor.Dust boxCarefully designed structure minimizes scattering of dust when opening/closing the drawer. Collected dust is stored in a dedicated antistatic plastic bag, which is easy to replace.Flexible suction port loactionSuction port can be located at either side.
