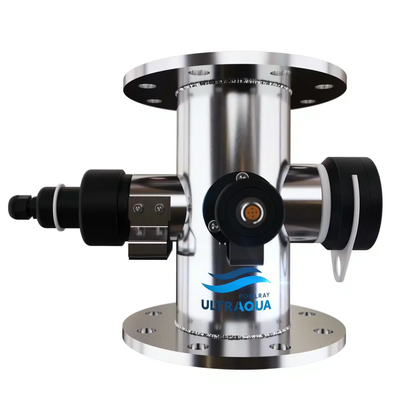

Ultraaqua - Model POOLRAY Series -Medium Pressure UV System

This is highlighted by the reactor geometries and the overall electronic control system, where the large, flanged connections ensure very low head loss even at high flow rates. Additionally, the PLC control enables automatic operational efficiency through lamp dimming based on time of day/week timers.

A material selection consisting of high industrial component quality guarantees long-term trouble-free operation in mostly hot, humid, and corrosive pool environments. Even though maintenance requirements are minimal in chlorinated environments like these, both disassembly and cleaning are straightforward processes.

• Compact and cost-optimized for pools and spas, including streamlined install and service
• Simplified maintenance and installation for minimal downtime
• High-grade electropolished stainless steel 316L material providing excellent resistance against chlorides
• Compact in-line design minimizing installation space requirements
• 9 000-hour lamp lifetime
• Sensor removable during operation for service and cleaning
• Single-sided access design with no special tools required

System Characteristics

• Reactor configuration: Inline (installation horizontal or vertical)
• Material: Electropolished SS 316L / 1.4404
• Inlet/outlet connection: 2,5 BSP - DN100
• Pressure rating: Max. 10 bar
• Flowrates: 1 m3/h – 90m3/h
• UV transmission (UVT%): 80 – 100%
• Lamp type: ULTRATHERM Medium-pressure
• Lamp lifetime: 9 000 hours

Control cabinet characteristics

• Enclosure material: Painted steel, SS304, SS316L, GFRP
• UV intensity sensor: Pool Optimized UV sensor, 360 degrees
• Sleeve wiping: SMARTWIPER
• SCADA connection: MODBUS TCP/IP
• Enclosure rating: IP54
• Lamp driver type: Electronic variable output
• System voltage: 1x230V, 3x400V+N+Pe +/- 10%, 47-63Hz (other optional)
• UV dose pacing: Optional
