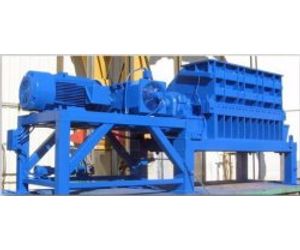

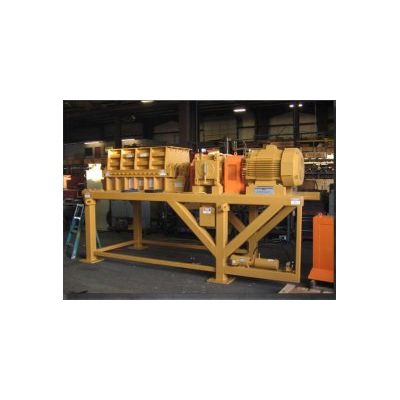

Saturn Grizzly - Model Super 50 -Medium Speed Grinder for Tyre Shredding

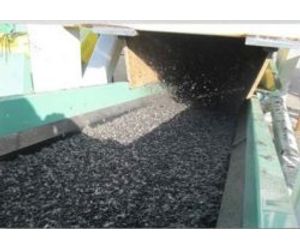

The Saturn Grizzly Super 50 (S-50) is a medium speed grinder that excels at reducing tire shreds into near steel free chips. The rotor knife arrangement contributes to the extremely efficient cutting action and high production capacity. The S-50 is designed for low capacity requirements. A multi-use knife design contributes to the S-50`s low costs of operation.
Most popular related searches
tire shredding
non-ferrous metal
non-ferrous scrap
discharge hopper
ferrous scrap metal
e-waste
tire processing
deluge system
wear plate
process waste
- Hydraulic Lid Opening
- Discharge Hopper
- Infeed Hopper
- Water Spray and Deluge System
- Support Stand
- Work Platform and Handrails
- Serrated Knife Design
- 2,085 sq. in. Screening Area
- Severe Duty Gearbox
- Replaceable AR500 Wear Plates
- Tire Processing
- Biomass
- Waste to Energy
- Non-Ferrous Metals
- Electronic Scrap
- 188" x 96" x 144"
- 32,000 Pounds

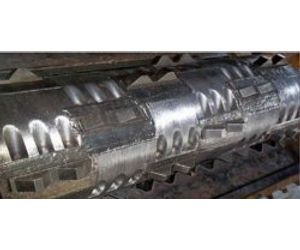

Rotor:
- 50" Length
- 19.5" Cutting Diameter
Knives:
- 30 Rotary Knives
- 6 Stationary Knives
Power, Speed, & Torque:
- 200 HP
- 141 RPM
- 7,500 ft-lbs of Torque
