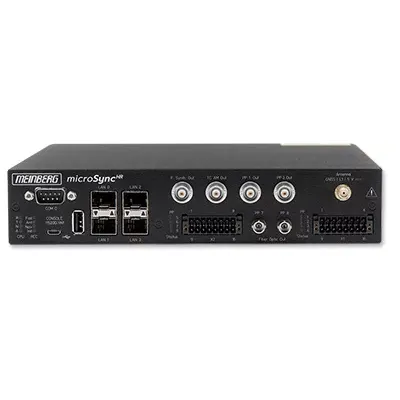

Meinberg - Model microSyncHR -IEEE 1588 PTP Grandmaster and NTP Server
The Meinberg microSyncHR is a versatile IEEE 1588 PTP Grandmaster and high-performance NTP server designed to provide precise synchronization for a variety of applications. This device is engineered with two IEEE 1588 ports for GNSS synchronization, allowing it to deliver highly accurate timing services. Supporting all major PTP profiles, including Default, Power, Telecom, SMPTE, AES67/RAVENNA, and IEEE 802.1AS, the microSyncHR can seamlessly integrate into diverse industrial ecosystems. It features multiple programmable output signals and four Gigabit Ethernet interfaces, enabling synchronization of both NTP and PTP devices. Its compact design with high port density facilitates easy deployment in numerous sectors, and the availability of various BNC connector configurations allows customization to meet specific industry needs. The microSyncHR is suitable for telecommunication infrastructures, power grid management, media and broadcast environments, and more demanding synchronization tasks requiring robust and reliable time distribution solutions.With unprecedented levels of efficiency and versatility, the microSyncHR sets new standards for compact yet powerful synchronization solutions.
Meinberg's microSyncHR is a feature-rich synchronization device, offering a high level of efficiency and versatility and impresses with its compact design and high port density.
- Selectable Reference Time Sources:
- GPS: Satellite receiver for the GPS constellation (using Meinberg's downconverter technology for reliable GNSS signal transmission over long distances)
- Recommended for fixed-site applications - GNS-UC: Satellite receiver for the GPS and Galileo constellations (using Meinberg's downconverter technology for reliable GNSS signal transmission over long distances)
- Recommended for both fixed-site and mobile applications - GNS: Multi-GNSS satellite receiver with support for all four of the main constellations: GPS, GLONASS, Galileo, and BeiDou
- Recommended for both fixed-site and mobile applications
- GPS: Satellite receiver for the GPS constellation (using Meinberg's downconverter technology for reliable GNSS signal transmission over long distances)
- High Performance NTP Server (NTP & SNTP v2, v3, v4)
- Meinberg Device Manager for configuration and status monitoring
- Powerful IEEE 1588 PTP time server incl. IEC/IEEE 61850-9-3 & IEEE C.37.238
- Half rack solution for a space efficient design
- Different oscillator options for advanced holdover performance
- All microSync models offer a wide range of multiple output signals, allowing devices to be synchronized over a network via NTP or PTP or directly "on the wire" using a variety of electrical and optical signals.
Providing two IEEE 1588 ports, the microSyncHR models are powerful GNSS synchronized PTP Grandmasters offering a high level of accuracy and supporting all major PTP profiles: Default, Power, Telecom (Frequency and Phase profiles), SMPTE, AES67/RAVENNA or IEEE 802.1AS profile.
All microSyncHR variants offer key features like multiple programmable output signals (two over fiber optical ST connectors), four Gigabit Ethernet interfaces and the ability to synchronize both NTP and PTP devices.
The sheer diversity of outputs and interfaces allows the microSyncHR to be deployed in a large range of industries and applications. Depending on industry requirements customers can choose from different variants to best suit their needs.
The variants are defined via the BNC connectors which can provide several I/O options.
