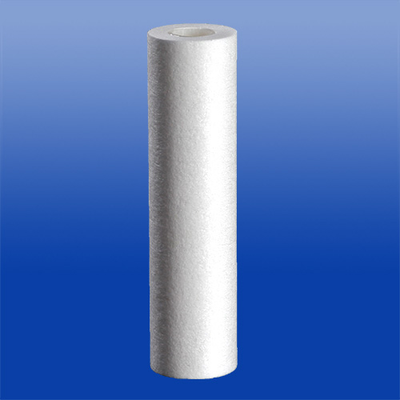

Darlly - Model DLPP Series -Melt Blown Filter Cartridges
DLPP Series Melt Blown Cartridges are one of the standard Darlly Filter Cartridges. It is fused and intertwined with polypropylene resin without any chemical glues. The cartridge is glued at random to form 3D micro porea which will make the cartridge's 3 layers with fibers on the surface and inside. With the fiber, density from high filtration rating, strong pollutants hold capacity, low pressure drop, gradual changing structure loose outside and close inside, it can remove contaminant effectively, such as suspended substance, particulate and rust, providing efficient filtration and long service life.
Most popular related searches
melt-blown filter cartridge
melt-blown filter
melt-blown cartridge
filter cartridge
melt-blown cartridge filter
beverage water
cartridge filter
organic solvent
industrial water
food industry water
- H Series Coarse surface · Strong mechanical performance and high pressure resistant
- Blank Series Smooth Surface-No Fiber Shedding, Graded Density Pore Structure
- DG Series Deep Groove-Bigger Filtration Area , High Flow & Dirt Holding Capacity
- MG Series Minigroove-Tight Fiber Construction and High Filtration Efficiency
- R.O.Pre-filtration
- Food and Beverage
- Industry Water, Plating Solution
- Chemical, Organic Solvent Filtration
- Microelectronics
- Pharmaceutics
Dimension:
- Outer Diameter: 63mm, 115mm
- Inner Diameter: 28mm
- Length: 9.75", 9.87", 10", 20", 30", 40"
Material of Constructions:
- Media: PP
- End Cap: PP
- Sealing: Silicone, EPDM, NBR, FKM
- Core: PP
Performance:
- Max. Operating Temperature: 65?(149° F)
- Max. Operating DP: 2 bar(29psi) @ 20?(68° F)
