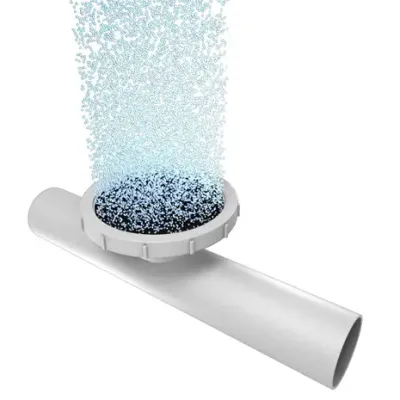

Xylem Sanitaire - Model Silver Series II LP -Membrane Disc Diffusers
The Sanitaire Silver Series II LP is a 9-inch low-pressure version of the Silver Series II membrane, and features a modified slit pattern to handle airflow up to 20.4 Nm3/h (12 scfm), with minimal pressure loss. Lower energy consumption and raised operating efficiencies are made possible by the unique membrane shape, integrated O-ring and top-sealing threaded retainer ring which eliminates leakage. A highly effective, integrated check valve enables the aeration zones to be easily shut down for air-on/air-off applications. Sanitaire patented pipe joints are designed to withstand thermal expansion and contraction, water hammer and other dynamic stresses, while pipe supports allow infinite height adjustment for accurate grid leveling.
- Ideal for sludge and other heavy-duty applications
Low-pressure version of the Sanitaire Silver Series II membrane - Handles airflow up to 20.4 Nm3/h (12 scfm) with minimal pressure loss
General Information: Silver Series II LP membrane disc diffusers
- Standards: ASCE, ATV, ISO, ASTM, ASME
- Applications: Aerobic Digesters, Conventional Activated Sludge, MBR, SBR, Oxidation Ditches, Channel Aeration
- Air on / air off operation: Yes
- Shop oxygen transfer test: Available
- Performance warranties: Yes
- Fixed to floor systems: Yes
- Retrievable (liftable) design available: Yes
System Components: Silver Series II LP membrane disc diffusers
- Droplegs: 304 SS, 316 SS
- Manifold: uPVC, cPVC
- Distribution header: uPVC
- Supports: 304 SS, 316 SS
- Liquid purge system: Manual or Automatic Available
- Disc diffusers: uPVC, EPDM
- Controls (optional): OSCAR process performance optimizer
- Blowers (optional): Positive displacement or centrifugal
- SaniClean liquid cleaning system (optional): Safe diffuser DWP recovery system
Diffuser Properties: Silver Series II LP membrane disc diffusers
- Diffuser types (mm): Saddle and Screw-on - 229mm
- Diffuser types (inches): Saddle and Screw-on - 9"
- Typical operating air flow range per diffuser: 1 to 12 scfm (1.7 to 20.4 Nm3/h)
- Typical standard oxygen transfer efficiency (SOTE): 4-6.5% per m submergence (1.3-2% per ft submergence)
- Typical standard aeration efficiency: 1.5-4kg O2 / kWh (3-8 lb O2 / hph)
- Special features: Membrane slit pattern that is stronger and harder to clog for digester applications
- Integrated check-valve: Yes
- Diffuser membrane material: Proprietary Sanitaire Blend EPDM
- Diffuser holder material: uPVC and cPVC
- Effective surface area: 0.41 ft2 (0.038 m2)
- Orifice size: 0.2 or 0.25 in (5 or 6 mm)
