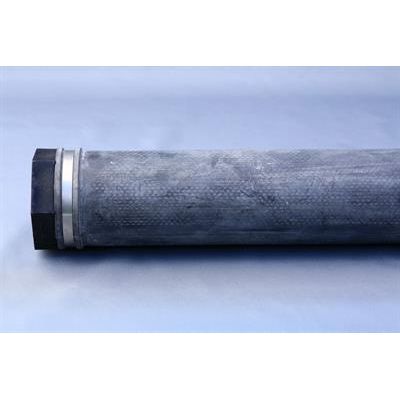

ENVICON Wastewater Aerator - Model EMR EPDM AeroTop -Membrane Tube Diffuser EMR
ENVICON membrane tube diffusers EMR are quality products from Germany. They offer a long service life and durable, cost-effective operation of aeration systems. The tube diffuser EMR AeroTop has a proven, strong fine bubble EPDM membrane with low plasticiser content for high demands and municipal wastewater. Made and perforated in Germany. The optimised, fine-bubble aeration ensures excellent oxygenation. Coarse-bubble version also available. A special receptacle for the stainless steel clamps on the ends of the membranes makes it possible to fit the clamps accurately even on the replacement of the membranes on site and increases the sealing action. ENVICON tube diffusers have a 1� female thread connection. ENVICON adapters EBA2 for use in pairs for fastening tube diffusers are available for all tube types (square or round tube) and for all common tube sizes.
Membrane: EPDM, sulphur-crosslinked
Connection: 1" female
Perforated length: 500 mm, 750 mm, 1000 mm
Adapter EBA2: Square tube from 80 x 40 mm, Round tube DN50 to DN 150; oD63 to oD154
Bubble size: Fine and coarse bubble
Aeration: Intermittent and permanent
Country of origin: Germany
