membraPure - Model HA-RO Cube Large EH -Reverse Osmosis Water Treatment System
The HA-RO Cube Large EH water treatment system is a pre-assembled reverse osmosis setup featuring an integrated softening system. It is designed for desalinating drinking water in compliance with the German Drinking Water Ordinance.
Additionally, it offers an optional enhancement by incorporating an EDI cell, transforming it into the HA-RO Cube Large EH EDI. This configuration can produce purified water at rates of up to 120 L/h, maintaining a conductivity level below 1 µS/cm.

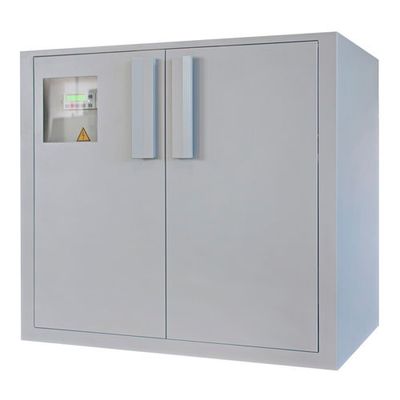

Installed within an aluminum frame, this compact pure water treatment system offers flexibility in placement. It can be installed as an under-bench unit, accompanied by a customizable rollable collection tray.
Designed for the production of pure water from drinking water
The HA-RO cube large system is designed for producing pure water from drinking water or pre-treated drinking water. It`s available in four different configurations (large, large EH, large EH EDI, large EDI) to meet specific requirements for various applications. The basic HA-RO cube large system is a simple reverse osmosis unit capable of producing up to 130 L/h.
The HA-RO cube large EH integrates a water softening unit. Furthermore, the HA-RO cube large EH EDI adds an additional EDI cell to the water softening unit to provide a production capacity of up to 120 L/h with water quality < 1 μS/cm.
- Pure water quality (without EDI): 15 μS/cm; Type IV
- Pure water quality (with EDI): < 1 μS/cm, Type II
- Production rate (without EDI): max. 130 L/h
- Production rate (with EDI): max 120 L/h
- Membrane retention rate: 99 % salts, > 99 % gems/ bacteria
- dimensions: 890 x 810 x 560 mm
- weight, power: 110 kg, 230 V AC 16 A
- feed water conductivity: max. 2500 μS/cm
- feed water inlet pressure: 3 - 6 bar
- feed water temperature: 5 - 25 °C
- Silt Density Index (SDI): < 3
- Salt content: max 2000 mg/L
- free chlorine: < 0.01 mg/L
- Mangansese: 0.05 mg/L
- Iron: 0.2 mg/L
Equipment

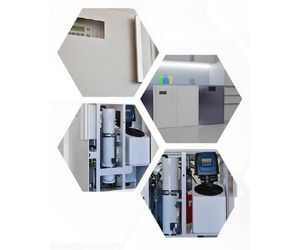

- The HA-RO cube is provided in a robust plastic frame structure, specially designed for
- underbench installation.
- The double-door design allows for easy access to the components
- The system processes are managed through an ECO control panel with a 2-line display

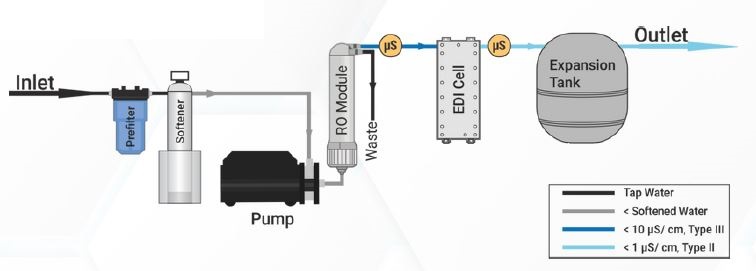

- The system comes standard with a system separator, a pressure switch for input pressure,
- and a pre-filter (5 μm, 10"). The integrated pressure boosting pump ensures the required operating pressure for the RO module
- The membrane pressure vessel with a capacity of 24 L maintains a largely constant pressure
- through which the treated and stored water can be delivered to the user (e.g., laboratory
- dishwasher, autoclave, disinfection device, pure water system)
Consumables
- The HA-RO cube large is engineered for minimal maintenance requirements.
- It is recommended to replace the prefilter anually.
- With the inclusion of the softener, the only additional requirement is salt for regeneration,
- which can be purchased at any hardware store.
- There is no need for cartridge replacements.
