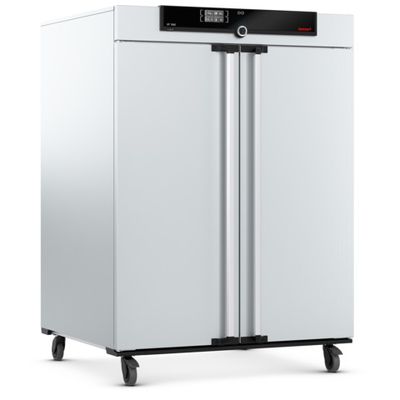

Memmert - Model UF1060 -Cleanroom Drying Oven

Standard delivery Cleanroom drying oven
The universally applicable oven is our classic appliance for temperature control in science, research and material tests in industry. The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology.

On this page, you can find all the essential technical data on the Memmert cleanromm oven. Our customer relations team will be pleased to help if you want further information.

Temperature
Working temperature range: at least 5 (UN/UNplus/UNm/UNmplus) or 10 (UF/UFplus/UFm/UFmplus) above ambient temperature to +300 °C
Setting accuracy temperature: up to 99.9 °C: 0.1 / from 100 °C: 0.5
Setting temperature range: +20 to +300 °C
Temperature sensor: 1 Pt100 sensor DIN class A in 4-wire-circuit

Control technology
Language setting: German, English, Spanish, French, Polish, Czech, Hungarian
ControlCOCKPIT: SingleDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display
Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
Function SetpointWAIT: the process time does not start until the set temperature is reached
Calibration: three freely selectable temperature values
adjustable parameters: temperature (Celsius or Fahrenheit), fan speed, air flap position, programme time, time zones, summertime/wintertime

Ventilation
Fan: forced air circulation by 2 quiet air turbines, adjustable in 10 % steps
Vent: vent connection with restrictor flap

Communication
Documentation: programme stored in case of power failure
Programming: AtmoCONTROL software for reading out, managing and organising the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand).

Safety
Temperature control: adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature
Autodiagnostic system: for fault analysis

Standard equipment
Internals: 2 stainless steel grid(s), electropolished
Works calibration certificate: Calibration at +160°C
Door: fully insulated stainless steel doors with 2-point locking (compression door lock)

Stainless steel interior
Dimensions: w(A) x h(B) x d(C): 1040 x 1200 x 850 mm (d less 39 mm for fan)
Interior: easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
Volume: 1060 l
Max. number of internals: 14
Max. loading of chamber: 300 kg
Max. loading per internal: 20 kg

Textured stainless steel casing
Dimensions: w(D) x h(E) x d(F): 1224 x 1720 x 1035 mm (d +56mm door handle)
Installation: on lockable castors
Housing: rear zinc-plated steel

Electrical data
Voltage Electrical load: 400 V and 3x 230 V w/o neutral, 50/60 Hz approx. 7000 W

Ambient conditions
Set Up: The distance between the wall and the rear of the appliance must be at least 15 cm. The clearance from the ceiling must not be less than 20 cm and the side clearance from walls or nearby appliances must not be less than 5 cm.
Altitude of installation: max. 2,000 m above sea level
Ambient temperature: +5 °C to +40 °C
Humidity rh: max. 80 %, non-condensing
Overvoltage category: II
Pollution degree: 2

Packing/shipping data
Transport information: The appliances must be transported upright
Customs tariff number: 8419 8998
Country of origin: Federal Republic of Germany
WEEE-Reg.-No.: DE 66812464
Dimensions approx incl. carton: w x h x d: 1370 x 1970 x 1300 mm
Net weight: approx. 252 kg
Gross weight carton: approx. 416 kg
