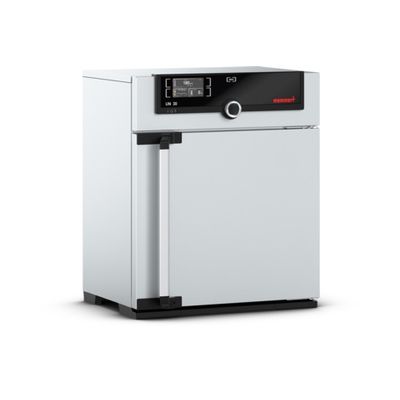

Memmert - Model UN30 -Universal Oven
Precise drying, heating, ageing, burn-in and hardening in research, science, industry and quality assurance.
Standard delivery Universal oven
The universally applicable lab oven U is Memmert’s classic appliance for temperature control in science, research and material tests in industry. The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology.
On this page, you can find all the essential technical data on the universal Memmert lab oven. Our customer relations team will be pleased to help if you want further information.
Temperature
Working temperature range: at least 5 (UN/UNplus/UNm/UNmplus) or 10 (UF/UFplus/UFm/UFmplus) above ambient temperature to +300 °C
Setting accuracy temperature: up to 99.9 °C: 0.1 / from 100 °C: 0.5
Setting temperature range: +20 to +300°C
Temperature sensor: 1 Pt100 sensor DIN class A in 4-wire-circuit
Control technology
Language setting: German, English, Spanish, French, Polish, Czech, Hungarian
ControlCOCKPIT: SingleDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display
Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
Function SetpointWAIT: the process time does not start until the set temperature is reached
Calibration: three freely selectable temperature values
adjustable parameters: temperature (Celsius or Fahrenheit), air flap position, programme time, time zones, summertime/wintertime
Ventilation
Convection: natural convection
Fresh air: Admixture of pre-heated fresh air by electronically adjustable air flap
Vent: vent connection with restrictor flap
Communication
Documentation: programme stored in case of power failure
Programming: AtmoCONTROL software for reading out, managing and organising the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand).
Safety
Temperature control: adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature
Autodiagnostic system: for fault analysis
Standard equipment
Door: fully insulated stainless steel door with 2-point locking (compression door lock)
Internals: 1 stainless steel grid(s), electropolished
Works calibration certificate: Calibration at +160°C
Stainless steel interior
Interior: easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
Volume: 32 l
Dimensions: w(A) x h(B) x d(C): 400 x 320 x 250 mm
Max. number of internals: 3
Max. loading of chamber: 60 kg
Max. loading per internal: 20 kg
Textured stainless steel casing
Dimensions: w(D) x h(E) x d(F): 585 x 704 x 434 mm (d +56mm door handle)
Housing: rear zinc-plated steel
Electrical data
Voltage Electrical load: 230 V, 50/60 Hz
approx. 1600 W
Voltage Electrical load: 115 V, 50/60 Hz
approx. 1600 W
Ambient conditions
Set Up: The distance between the wall and the rear of the appliance must be at least 15 cm. The clearance from the ceiling must not be less than 20 cm and the side clearance from walls or nearby appliances must not be less than 5 cm.
Altitude of installation: max. 2,000 m above sea level
Ambient temperature: +5 °C to +40 °C
Humidity rh: max. 80 %, non-condensing
Overvoltage category: II
Pollution degree: 2
Packing/shipping data
Transport information: The appliances must be transported upright
Customs tariff number: 8419 8998
Country of origin: Federal Republic of Germany
WEEE-Reg.-No.: DE 66812464
Dimensions approx incl. carton: w x h x d: 660 x 890 x 650 mm
Net weight: approx. 45 kg
Gross weight carton: approx. 61 kg
